1976 Yamaha IT400 Head Lamp OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

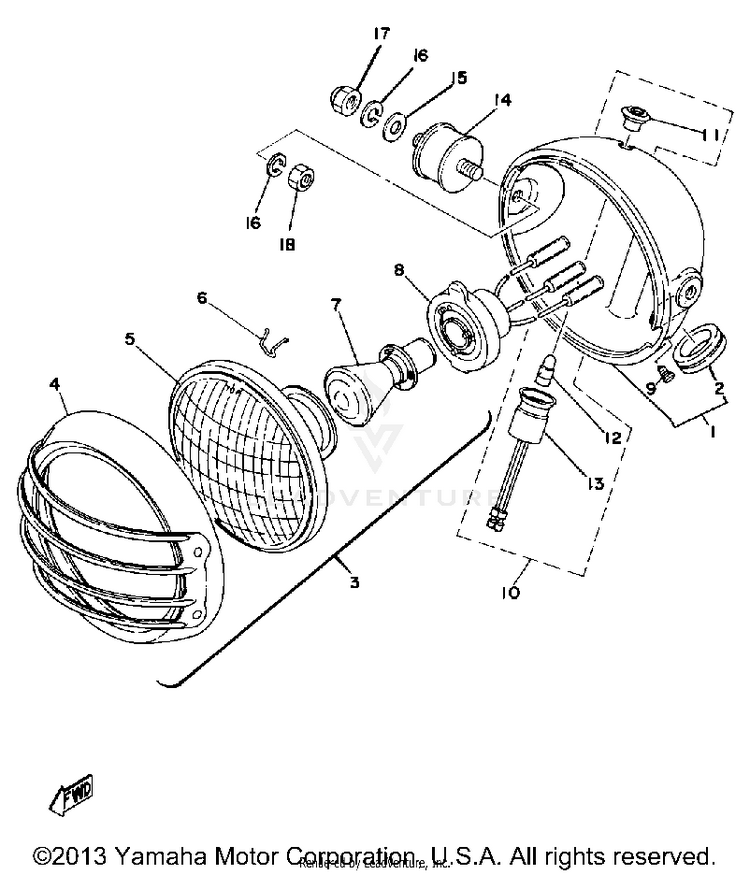

HEAD LAMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1539-84130-00-36BODY ASSEMBLY, HEADLIGHT | WHITE$74.99$58.49Not Shipping
2150-84153-00-00GROMMET, WIRE HARNESS$21.99$18.031 In-Stock
4493-84115-60-00RIM, HEADLIGHT$80.99$63.17Not Shipping
5434-84120-60-00LENS ASSEMBLY$11.79$9.67Not Shipping
6195-84324-00-00SPRING, REFLECTOR$7.49$6.74Usually ships in 7-10 business days
7214-84114-60-00BULB, HL6V35/35W$25.99$20.272 In-Stock
8214-84112-61-00SOCKET$73.99$57.71Not Shipping
990152-05005-00SCREW, COUNTERSUNK$4.65$4.002 In-Stock
10214-84101-61-00PILOT LIGHT ASSEMBLY$25.99$21.31Not Shipping
11256-84357-61-00BODY, PILOT LIGHT$10.60$8.27Not Shipping
12104-83517-10-00BULB$9.49$7.4010+ In-Stock
13214-84150-61-00SOCKET CORD ASSEMBLY 2$24.99$20.49Usually ships in 7-10 business days
141K7-84137-60-00BOLT, SPECIAL$8.88$7.99Usually ships in 7-10 business days
1592990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1795303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
1895333-08600-00NUT$3.80$3.4710+ In-Stock
