1976 Yamaha IT400 Shifter 2 OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER 2

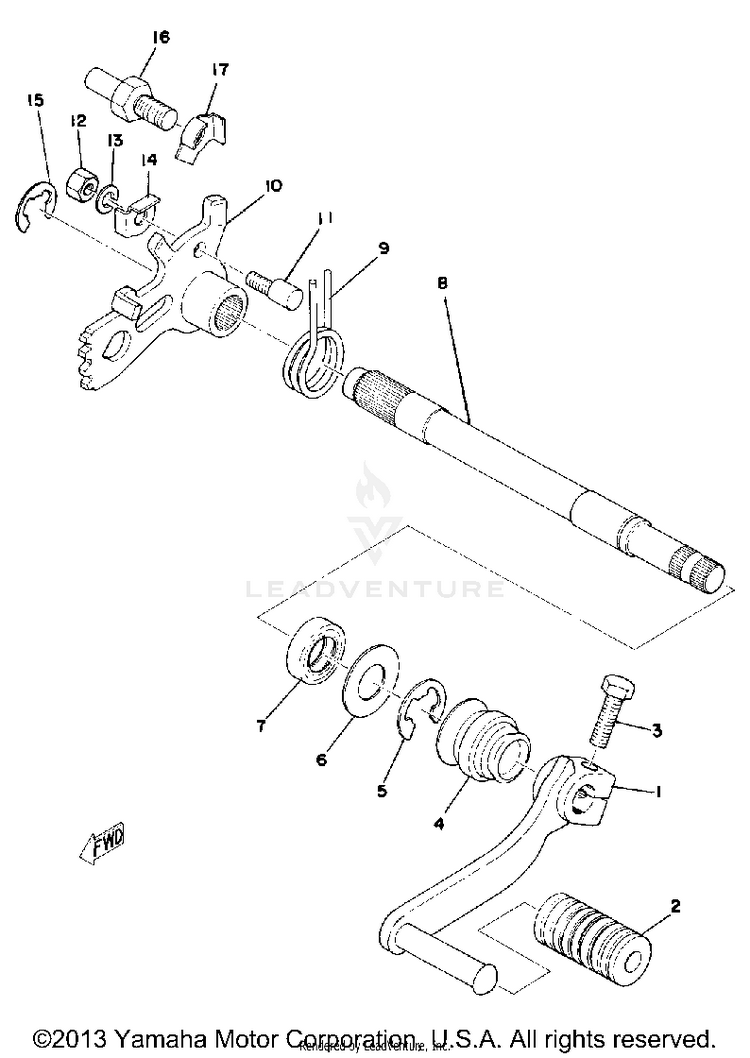

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1510-18111-00-33PEDAL, SHIFT$32.99$27.05Not Shipping
2132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
397017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
4214-18131-00-00BOOT, SEALING$6.99$6.29Not Shipping
599001-12600-00CIRCLIP$6.49$5.064 In-Stock
690201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
793109-14010-00OIL SEAL, SDO-TYPE$14.49$11.3010+ In-Stock
8363-18125-00-00SHAFT, SHIFT$23.94$19.63Not Shipping
990508-32265-00SPRING, TORSION$3.60$3.24Usually ships in 7-10 business days
10434-18121-00-00LEVER, SHIFT 1$22.16$18.17Not Shipping
1190149-06017-00SCREW, SPEC''L SHAPE (214-18186$8.49$7.64Usually ships in 7-10 business days
1295380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1490215-06016-00WASHER, LOCK$3.85$3.46Usually ships in 7-10 business days
1599006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
16278-18127-01-00

(replaces part #
278-18127-00-00)

STOPPER, SCREW$18.99$15.571 In-Stock
1790215-08015-00WASHER$4.35$3.92Not Shipping
