1976 Yamaha IT400 Tail Lamp OEM Parts Diagram

Submodel IT400C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAIL LAMP

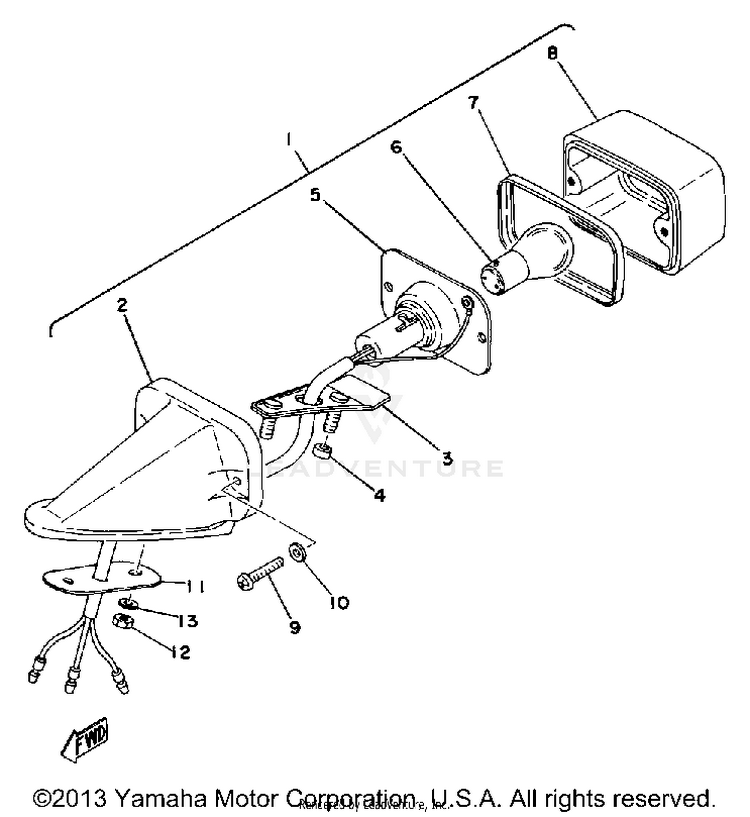

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1434-84500-64-00TAILLIGHT ASSEMBLY$123.99$96.71Not Shipping
2434-84519-64-00BRACKET, TAILLIGHT$106.99$83.45Usually ships in 7-10 business days
3434-84511-62-00BASE, TAILLIGHT$17.80$14.60Usually ships in 7-10 business days
4434-84557-60-00COLLAR$2.30$2.07Not Shipping
5434-84517-61-00CORD, TAILLIGHT$55.99$43.67Usually ships in 7-10 business days
6122-84514-30-XX

(replaces part #
122-84514-30-00)

BULB 6V21CP(1154)$2.40$2.06Not Shipping
75AU-83323-01-00

(replaces part #
434-84515-61-00)

RIM,TAILLIGHT$12.99$10.65Usually ships in 7-10 business days
8434-84521-69-00LENS, TAILLIGHT$39.99$32.79Usually ships in 7-10 business days
9434-84524-61-00SCREW, LENS FITTING$2.97$2.67Usually ships in 7-10 business days
1090201-05029-00

(replaces part #
434-84522-62-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
11434-84525-01-00WASHER, SPECIAL$3.05$2.74Usually ships in 7-10 business days
1295380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
1392990-05100-00WASHER, SPRING-$0.8310+ In-Stock
