1977 Yamaha LB80 Stand-Footrest OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

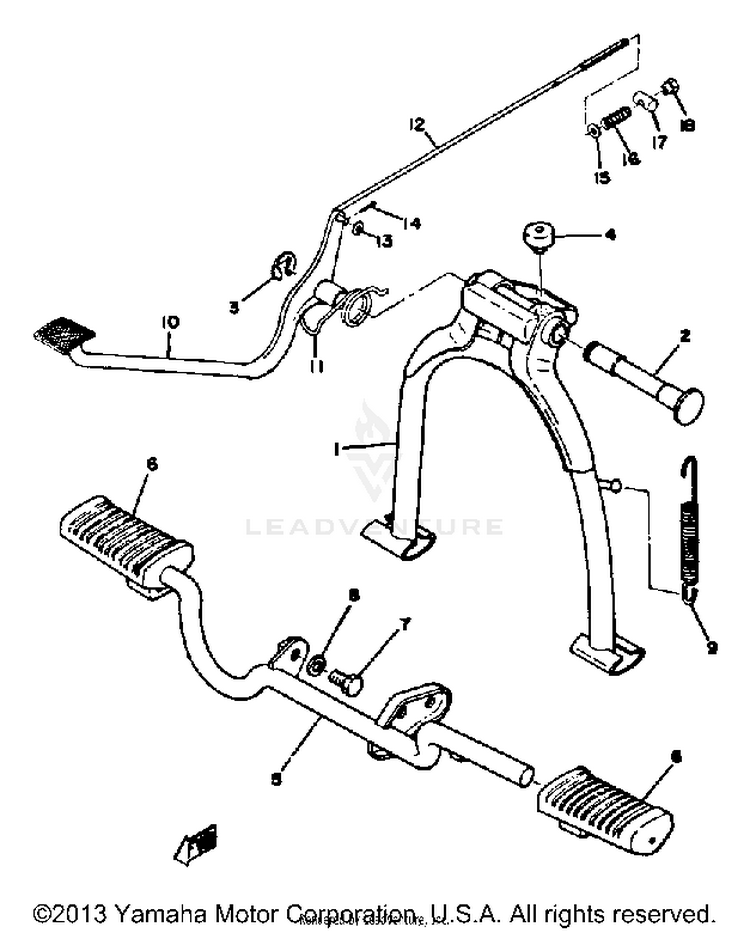

STAND-FOOTREST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90101-08287-00BOLT$2.30$2.07Usually ships in 7-10 business days
-384-27413-00-00COVER, FOOTREST$13.99$11.47Usually ships in 7-10 business days
-439-27112-00-00SHAFT, MAIN STAND$17.49$14.34Usually ships in 7-10 business days
1439-27111-03-00STAND, MAIN (439-27111-03-33) | YAMAHA BLK$120.99$94.37Usually ships in 7-10 business days
2336-27112-00-00SHAFT, MAIN STAND | 1015$9.49$8.54Not Shipping
393430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
41M3-27114-00-00STOPPER, MAIN STAND$9.99$8.99Usually ships in 7-10 business days
5439-27411-00-00FOOTREST 1$85.99$67.07Not Shipping
6441-27413-01-00COVER, FOOTREST$18.99$15.57Usually ships in 7-10 business days
797013-08016-00

(replaces part #
97313-08016-00)

BOLT-$1.7810+ In-Stock
892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
990506-26270-00SPRING, TENSION$17.49$13.6410+ In-Stock
10563-27211-02-91PEDAL, BRAKE$37.99$31.15Not Shipping
1190508-26037-00SPRING, TORSION | 1015$3.05$2.74Not Shipping
12288-27231-00-00ROD, BRAKE | 1015$17.99$14.75Not Shipping
1392990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646) | 1015$2.95$2.797 In-Stock
1491490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER | 1015$1.99$1.7110+ In-Stock
1592990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1690501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1790249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
1890179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
