1977 Yamaha LB80 Steering Lb80iiad OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING LB80IIAD

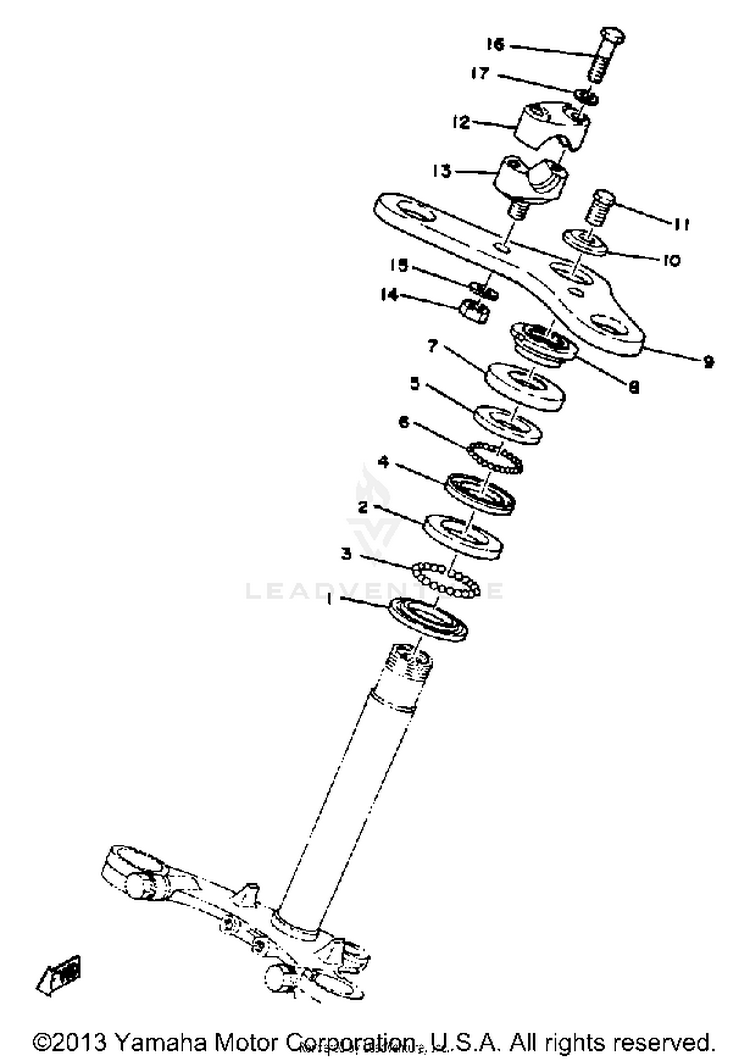

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23411-00-00

(replaces part #
156-23411-00-00)

. .RACE, BALL 1$9.49$7.406 In-Stock
2B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
393501-04011-00BALL$9.49$7.4010+ In-Stock
4BP2-23412-00-00

(replaces part #
122-23412-00-00)

RACE, BALL 2$8.49$6.626 In-Stock
5BP2-23411-00-00

(replaces part #
122-23411-00-00)

RACE, BALL 1$12.49$9.747 In-Stock
693503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
7122-23416-00-00COVER, BALL RACE 2$8.49$6.625 In-Stock
890179-25051-00NUT$36.99$28.853 In-Stock
9439-23433-50-19CROWN, HANDLE (439-23435-01) | SILVER$0.00$0.00Not Shipping
1090209-10160-00

(replaces part #
90209-10021-00)

WASHER, SPEC''L SHAP$8.49$6.6210+ In-Stock
1190209-10006-00BOLT, BASED HEAD HEXAGON (122-2$0.00$0.00Not Shipping
12462-23441-01-00

(replaces part #
462-23441-00-98)

HOLDER,HANDLE UPR$16.99$13.93Usually ships in 7-10 business days
13462-23442-00-98HOLDER, HANDLE LWR$15.99$13.11Usually ships in 7-10 business days
1495314-10600-00

(replaces part #
95301-10600-00)

NUT$2.55$2.19
1592990-10100-00

(replaces part #
92903-10100-00)

WASHER, SPRING$3.25$2.806 In-Stock
1697014-06035-00

(replaces part #
97313-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
1792990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
