1981 Yamaha DT100 C - D - I - Magneto Dt100h - J OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

C - D - I - MAGNETO DT100H - J

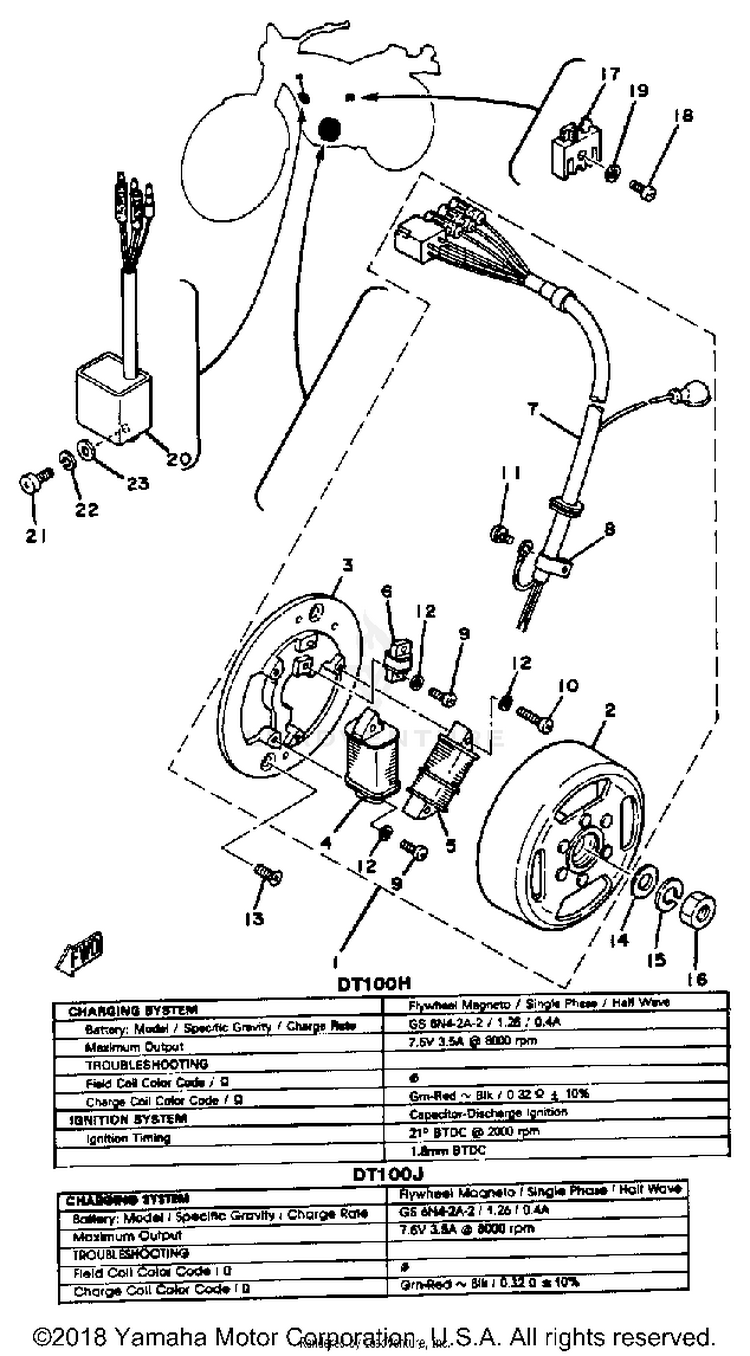

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13A3-85500-20-00CDI MAGNETO ASSEMBLY$234.99$183.29Usually ships in 7-10 business days
23A3-85550-20-00ROTOR ASSEMBLY$303.99$237.11Usually ships in 7-10 business days
33A3-85509-20-00BASE, MAGNETO$39.14$32.09Usually ships in 7-10 business days
43A3-85512-20-00COIL SOURCE 2$79.48$61.99Not Shipping
53A3-85513-20-00COIL, LIGHTING 1$98.59$76.90Not Shipping
63A3-85580-20-00COIL, PULSER$134.99$105.29Usually ships in 7-10 business days
73A3-85515-20-00LEAD WIRE ASSEMBLY$25.60$20.99Not Shipping
8104-81328-20-00CLAMP, LEAD$4.60$4.14Usually ships in 7-10 business days
998580-04014-00

(replaces part #
98503-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1098517-04025-00

(replaces part #
98511-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1198517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1292990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1398603-06012-00SCREW, OVAL HEAD (92701-06012)$1.85$1.66Not Shipping
1490201-12535-00WASHER, PLATE$10.49$8.186 In-Stock
1592990-12100-00

(replaces part #
92901-12100-00)

WASHER, SPRING$9.49$7.405 In-Stock
1690170-12175-00NUT$10.49$8.183 In-Stock
17353-81970-M2-00

(replaces part #
353-81970-63-00)

RECTIFIER ASSY$21.99$17.152 In-Stock
1898507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1992990-05100-00WASHER, SPRING-$0.8310+ In-Stock
203A3-85540-20-00CDI UNIT ASSEMBLY$247.75$193.24Usually ships in 7-10 business days
2198507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2390201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
