1981 Yamaha DT100 Electrical 2 Dt100k OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2 DT100K

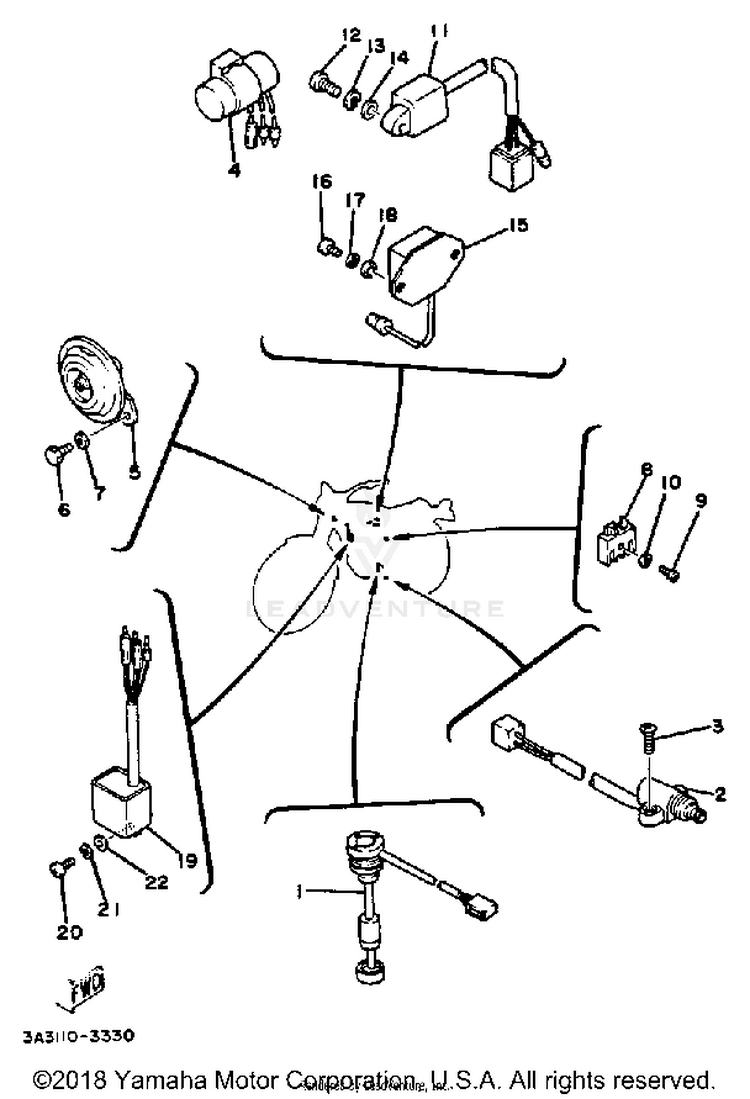

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T9-85720-01-00OIL LVL GAUGE ASSEMBLY$49.99$40.99Usually ships in 7-10 business days
23A3-82566-10-00SWITCH, SIDE STAND$91.99$71.75Usually ships in 7-10 business days
398707-05016-00

(replaces part #
98706-05016-00)

SCREW, FLAT HEAD$7.99$6.233 In-Stock
4542-83350-60-00FLASHER RELAY ASSEMBLY$75.99$59.27Usually ships in 7-10 business days
52A7-83371-10-00HORN$50.99$41.80Not Shipping
697013-06012-00BOLT$6.49$5.0610+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
8353-81970-M2-00

(replaces part #
353-81970-63-00)

RECTIFIER ASSY$21.99$17.152 In-Stock
998507-05018-00

(replaces part #
98501-05018-00)

SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1092990-05100-00WASHER, SPRING-$0.8310+ In-Stock
113A3-85540-20-00CDI UNIT ASSEMBLY$247.75$193.24Usually ships in 7-10 business days
1298507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1490201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
15443-81910-62-00VOLTAGE REG ASSEMBLY (498-81910$276.99$216.05Not Shipping
1697885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1890201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
194Y3-85590-M0-00CONTROL UNIT ASSEMBLY$93.48$72.91Not Shipping
2098580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2290201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
