1981 Yamaha DT100 Intake OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

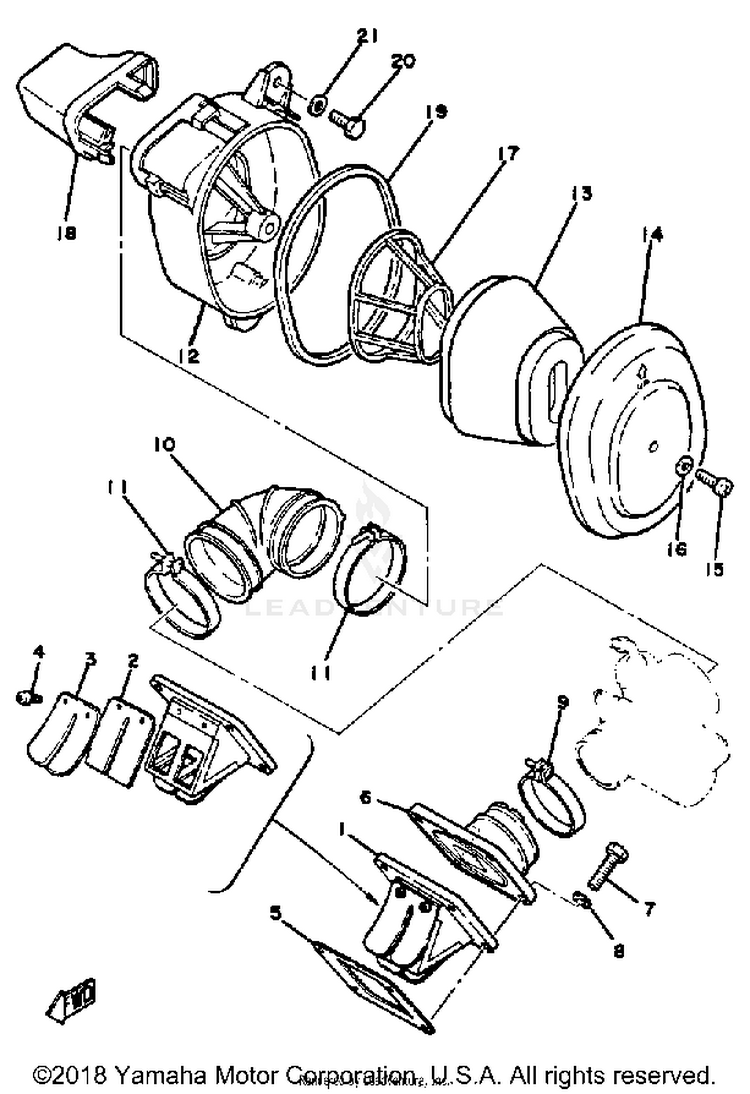

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
153V-13610-00-00

(replaces part #
314-13610-01-00)

REED VALVE ASSEMBLY$186.99$145.85Usually ships in 7-10 business days
2314-13613-01-00REED, VALVE$42.99$33.534 In-Stock
310X-13616-00-00

(replaces part #
314-13616-01-00)

STOPPER, REED VALVE$14.99$12.29Not Shipping
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
587A-13621-00-00GASKET, VALVE SEAT$9.49$7.409 In-Stock
6560-13565-00-00JOINT, CARBURETOR$78.99$61.61Usually ships in 7-10 business days
797017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
890201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
990460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
103A3-14453-02-00

(replaces part #
3A3-14453-01-00)

JOINT, AIR CLEANER 1$17.99$14.032 In-Stock
1190460-51059-00CLAMP, HOSE$18.49$14.4210+ In-Stock
121T9-14411-00-00CASE, AIR CLEANER 1$45.99$40.03Not Shipping
131T9-14450-01-00

(replaces part #
1T9-14450-00-00)

ELEMENT ASY$14.49$11.30
141T9-14412-00-00CAP, CLEANER CASE 1$22.99$18.85Not Shipping
1597880-06018-00

(replaces part #
98580-06018-00)

SCREW, PAN HEAD$4.70$4.048 In-Stock
1690201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
171T9-14458-00-00GUIDE$16.99$13.93Not Shipping
181T9-14437-00-00DUCT$24.99$21.52Not Shipping
1951Y-14462-00-00

(replaces part #
3V6-14416-00-00)

SEAL$19.99$15.598 In-Stock
2097D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2190201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
