1981 Yamaha DT100 Cylinder Head - Cylinder OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

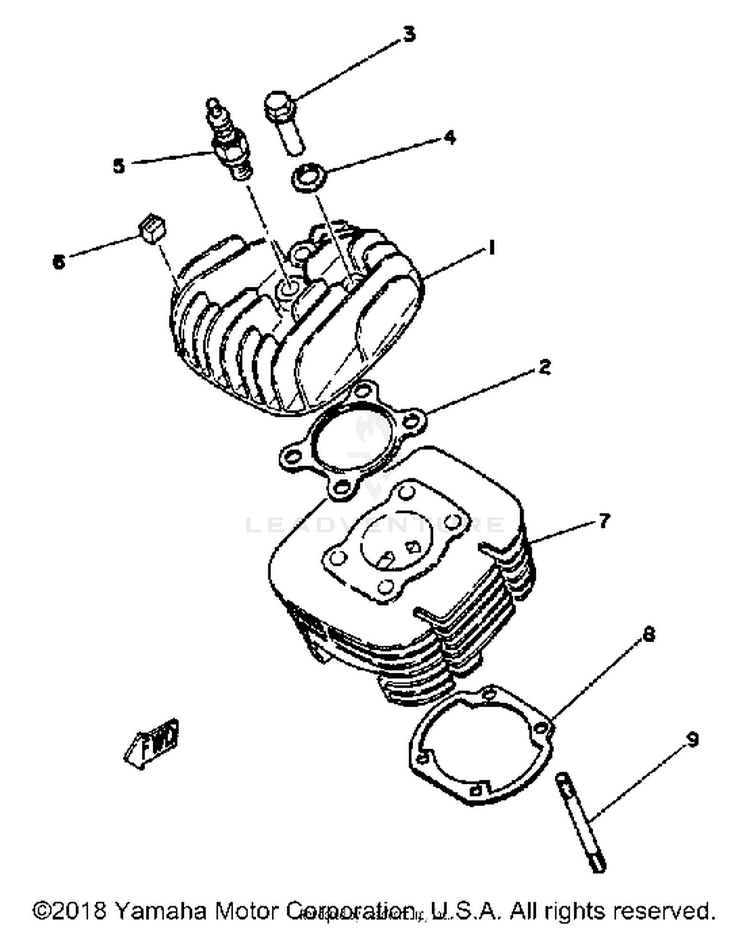

CYLINDER HEAD - CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13A3-11111-00-00HEAD, CYLINDER 1$49.93$40.94Usually ships in 7-10 business days
2276-11181-01-00GASKET, CYLINDER HEAD 1$34.99$28.693 In-Stock
390179-08303-00NUT$10.49$8.188 In-Stock
490201-12362-00WASHER, PLATE$10.49$8.1810+ In-Stock
5B7E-S0000-00-00

(replaces part #
NGK-B7ES0-00-00)

B7ES NGK SPLUG 4PK$3.05$2.62Not Shipping
6521-11161-01-00ABSORBER 1$8.49$7.64Usually ships in 7-10 business days
73A3-11311-01-00

(replaces part #
3A3-11311-00-00)

CYLINDER 1$293.99$229.31Not Shipping
83UL-11351-00-00GASKET, CYLINDER$8.49$6.623 In-Stock
990116-08065-00BOLT, STUD$10.49$8.60Usually ships in 7-10 business days
