1981 Yamaha DT100 Stand - Footrest OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

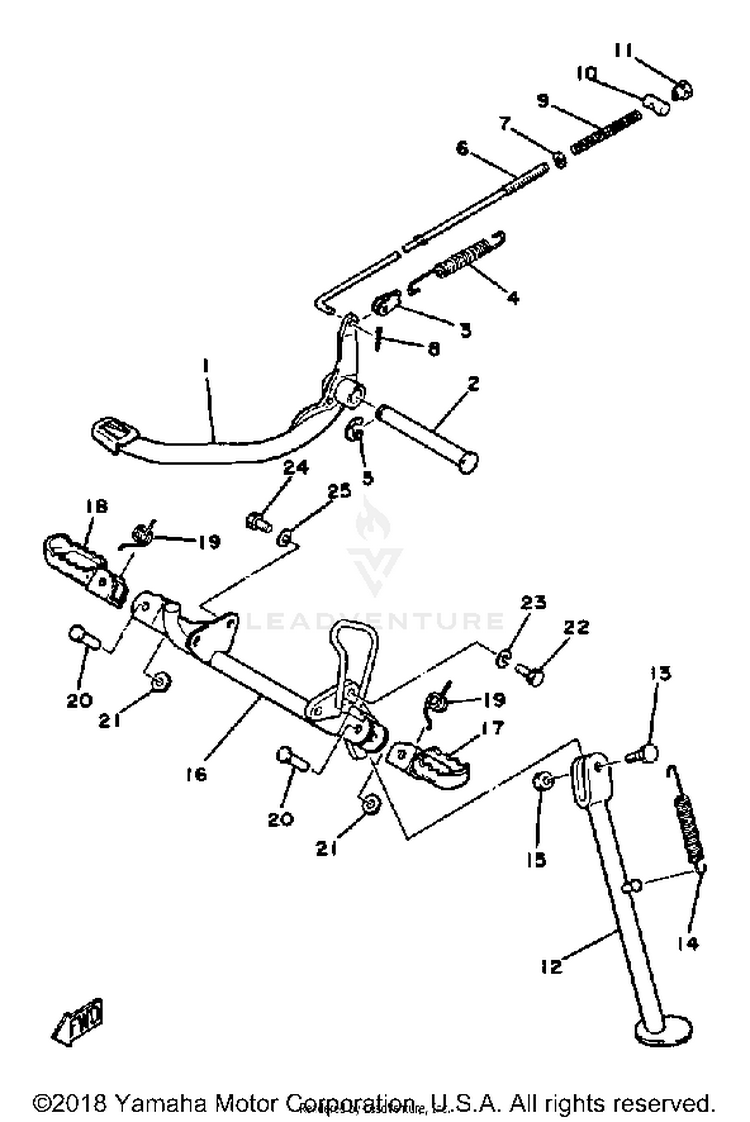

STAND - FOOTREST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1538-27211-01-00

(replaces part #
538-27211-00-R4)

PEDAL, BRAKE | BLACK$50.99$39.77Not Shipping
22A3-27212-00-00SHAFT, BRAKE PEDAL$21.99$18.03Not Shipping
290201-06042-00WASHER, PLATE$10.49$8.185 In-Stock
31T9-27254-00-00HOOK$6.99$6.29Not Shipping
490506-20157-00SPRING, TENSION$6.49$5.84Not Shipping
593430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
61T9-27231-00-00ROD, BRAKE$16.99$13.93Not Shipping
792990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
891490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
990501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1090249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
1190179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
12367-27311-02-R4STAND, SIDE | BLACK$47.99$39.35Not Shipping
123A3-27311-00-R4STAND, SIDE$17.38$14.25Usually ships in 7-10 business days
1390109-08031-00BOLT$9.49$7.403 In-Stock
1490506-29052-00SPRING, TENSION$12.49$9.743 In-Stock
1595380-08700-00

(replaces part #
95303-08700-00)

NUT-$3.796 In-Stock
161T9-27451-02-R4FOOTREST | BLACK$55.99$43.67Not Shipping
163A3-27451-00-R4FOOTREST | UNI CHROME (BLACK)$23.99$19.67Usually ships in 7-10 business days
1722W-27411-01-90FOOTREST 1 | UNI CHROME (BLACK)$35.99$28.071 In-Stock
1822W-27421-01-90FOOTREST 2 (3R1-27421-00) | UNI CHROME (BLACK)$35.99$28.076 In-Stock
1990508-20023-00SPRING, TORSION$4.25$3.6610+ In-Stock
2090243-08006-00PIN$13.49$10.526 In-Stock
2297013-08020-00

(replaces part #
97313-08020-00)

BOLT (661)$1.80$1.554 In-Stock
2392990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2497013-08016-00

(replaces part #
97313-08016-00)

BOLT-$1.7810+ In-Stock
2592990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
