1981 Yamaha DT100 Front Fender-Rear Fender OEM Parts Diagram

Submodel DT100H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER-REAR FENDER

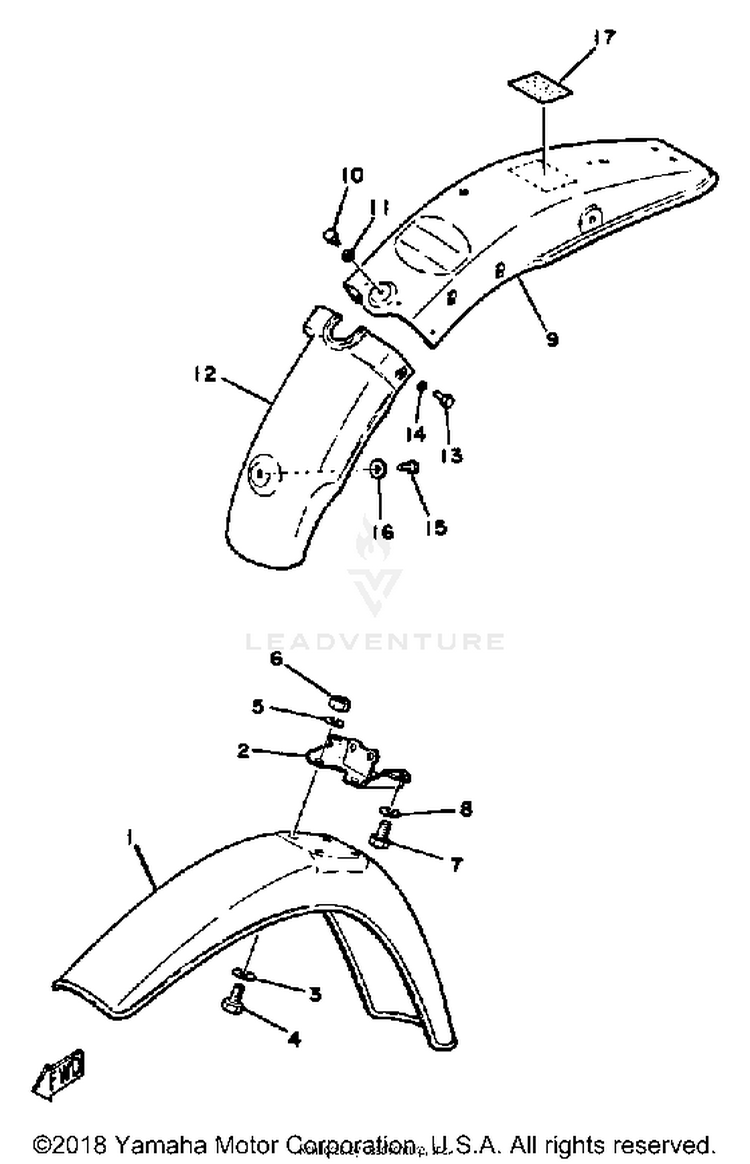

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12E7-21511-00-00FENDER, FRONT | CLEAN WHITE$37.99$31.15Not Shipping
21T9-21513-00-00STAY, FENDER 1$19.49$15.98Usually ships in 7-10 business days
390201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
497017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
695380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
797017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
91T9-21611-00-36FENDER, REAR | CLEAN WHITE$76.99$60.05Usually ships in 7-10 business days
1097017-06014-00

(replaces part #
97301-06014-00)

BOLT$9.49$7.4010+ In-Stock
1190201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
121T9-21621-00-00FLAP$42.99$35.25Not Shipping
1397013-06012-00BOLT$6.49$5.0610+ In-Stock
1490201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
1597013-06012-00BOLT$6.49$5.0610+ In-Stock
1690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
173A3-21683-30-00PLATE, SPEC$5.44$4.90Usually ships in 7-10 business days
173A3-21683-10-00PLATE, SPEC$3.36$3.02Usually ships in 7-10 business days
