1981 Yamaha MX80 Crankcase Cover OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

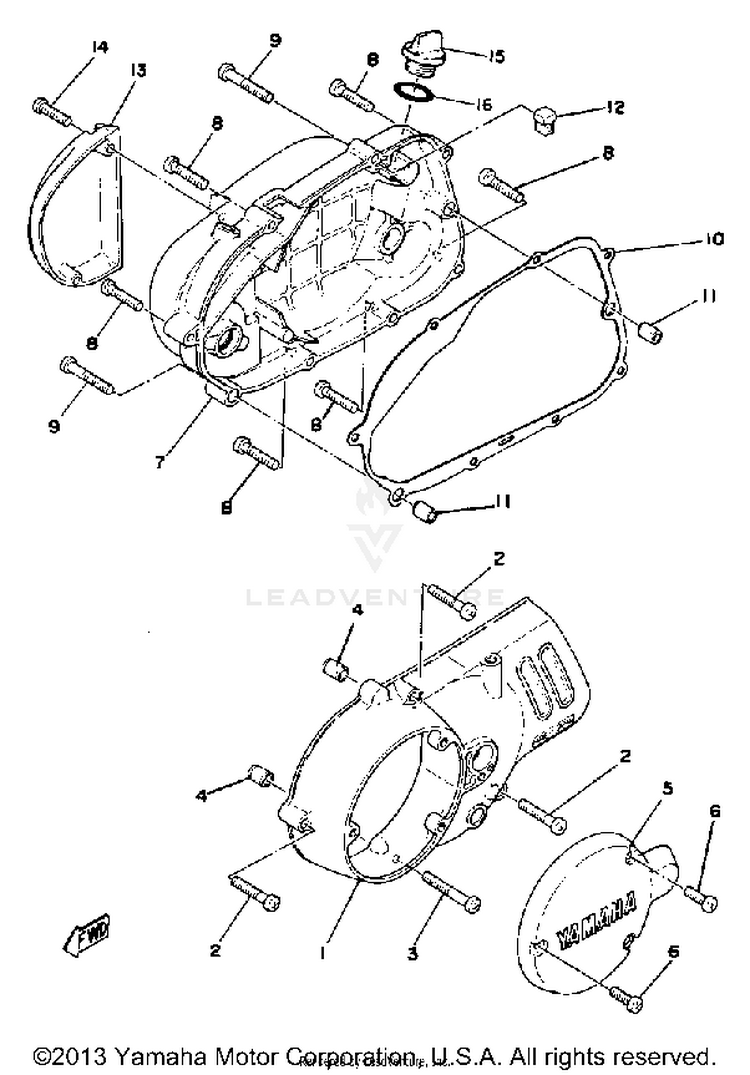

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1353-15411-00-98COVER, CRANKCASE L | LOW GLOSS BLK$84.99$66.29Not Shipping
298517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
398507-06045-00

(replaces part #
98506-06045-00)

SCREW, PAN HEAD$3.40$2.9210+ In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
5353-15415-00-98COVER, GENERATOR | LOW GLOSS BLK$40.99$33.61Not Shipping
698517-06020-00

(replaces part #
98516-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
7353-15421-09-00COVER, CRANKCASE R | LOW GLOSS BLK$71.99$56.15Usually ships in 7-10 business days
898517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
998507-06040-00

(replaces part #
98506-06040-00)

SCREW, PAN HEAD$3.22$2.779 In-Stock
103MT-15451-00-00GASKET, CRCS COVER$28.99$22.617 In-Stock
1199530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
12353-15437-02-00SCRAPER, OIL$6.49$5.84Not Shipping
13353-15416-00-98COVER, OIL PUMP | LOW GLOSS BLK$14.49$11.88Usually ships in 7-10 business days
1498517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
153Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1693210-21190-00O-RING$8.49$6.6210+ In-Stock
