1981 Yamaha MX80 Electrical 1 OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

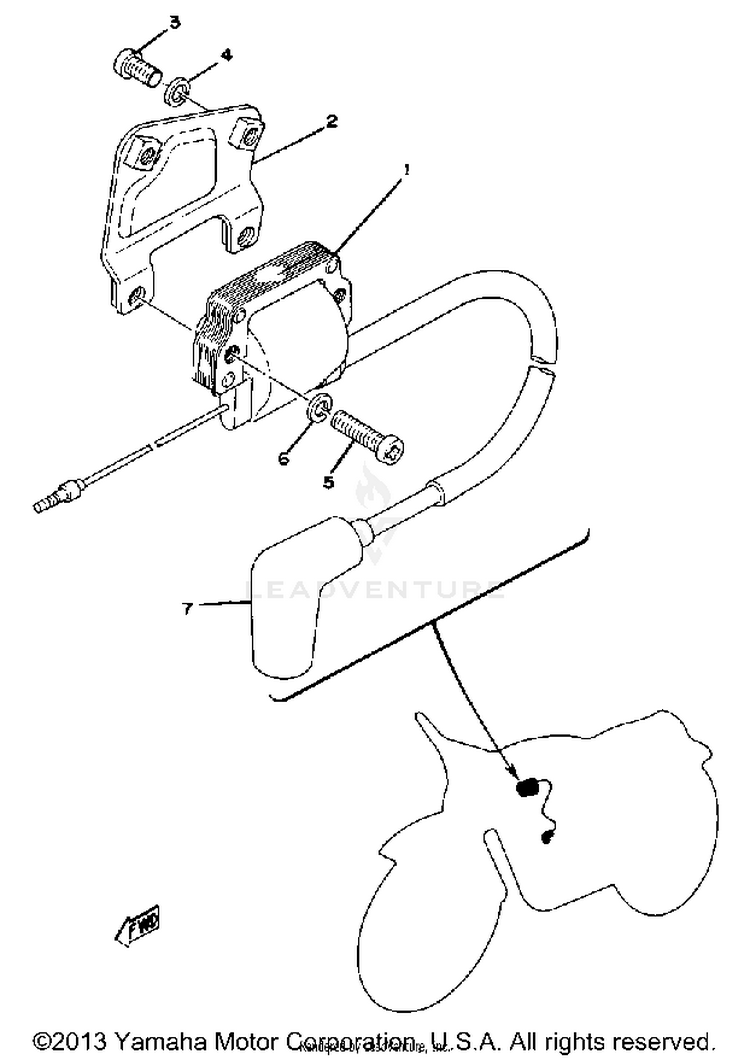

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-808-82370-10-00PLUG CAP ASSEMBLY | ALTERNATE PRTS$35.99$29.51Usually ships in 7-10 business days
1206-82310-41-00IGNITION COIL ASSEMBLY$101.99$79.55Not Shipping
2375-82316-01-00BRACKET, IGN COIL$26.99$22.13Usually ships in 7-10 business days
397885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
598517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
756J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
