1981 Yamaha MX80 Front Wheel OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

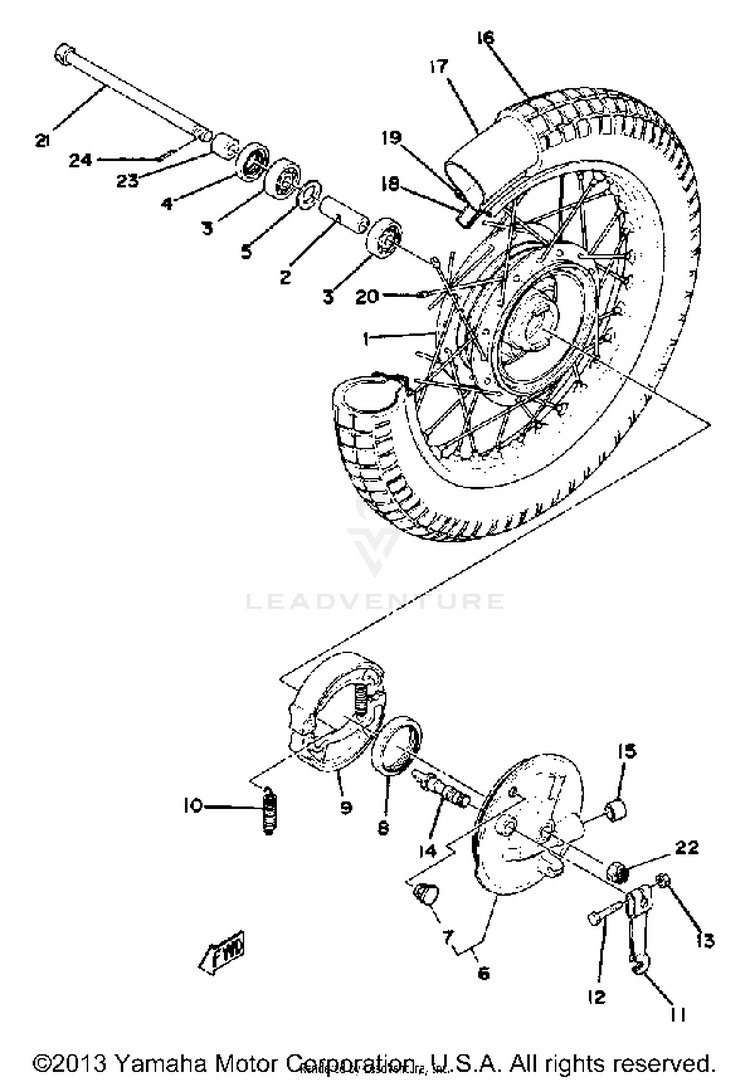

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1367-25111-00-Y8HUB, FRONT | SILVER DUST$52.99$41.33Usually ships in 7-10 business days
290560-10303-00SPACER, BEARING$13.49$11.06Not Shipping
393306-30003-00BEARING (B6300Z)$45.99$35.878 In-Stock
493102-20009-00OIL SEAL$11.49$9.9610+ In-Stock
52E9-25116-00-00FLANGE, SPACER 2$8.49$6.625 In-Stock
61K8-25121-00-35

(replaces part #
1K8-25016-00-Y8)

PLATE, BRAKE SHOE | SILVER DUST$78.99$61.61Usually ships in 7-10 business days
790480-10068-00GROMMET$9.49$7.4010+ In-Stock
893105-47007-00OIL SEAL$17.49$13.647 In-Stock
94KN-W253E-11-00

(replaces part #
296-W2536-00-00)

BRAKESHOE SET-2PCS$27.99$24.836 In-Stock
1090506-16150-00SPRING, TENSION$10.49$8.607 In-Stock
11538-25155-00-00LEVER, CAMSHAFT 1$34.99$28.69Usually ships in 7-10 business days
1290101-06278-00BOLT$2.60$2.2410+ In-Stock
1395380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
144GL-25351-00-00

(replaces part #
3Y6-25351-00-00)

CAMSHAFT$74.99$58.494 In-Stock
1590338-18014-00PLUG$11.49$8.962 In-Stock
1694125-15478-00250-15 IRC TRIALS$53.99$47.48Not Shipping
1794225-15103-00TUBE 250X15$33.99$26.51Not Shipping
1894313-15154-00BAND, RIM (130/90-15)$9.49$8.546 In-Stock
1994414-15058-00RIM 1.40X15$134.99$105.29Not Shipping
20288-25104-01-00SPOKE SET, FRONT$51.99$40.55Not Shipping
2199999-02188-00AXLE, WHEEL (353-25181-03-00)$38.99$31.97Not Shipping
2290171-10004-00NUT, CASTLE$8.49$6.628 In-Stock
2390387-10077-00COLLAR$5.99$5.39Not Shipping
2491490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
