1981 Yamaha MX80 Handlebar - Cable OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR - CABLE

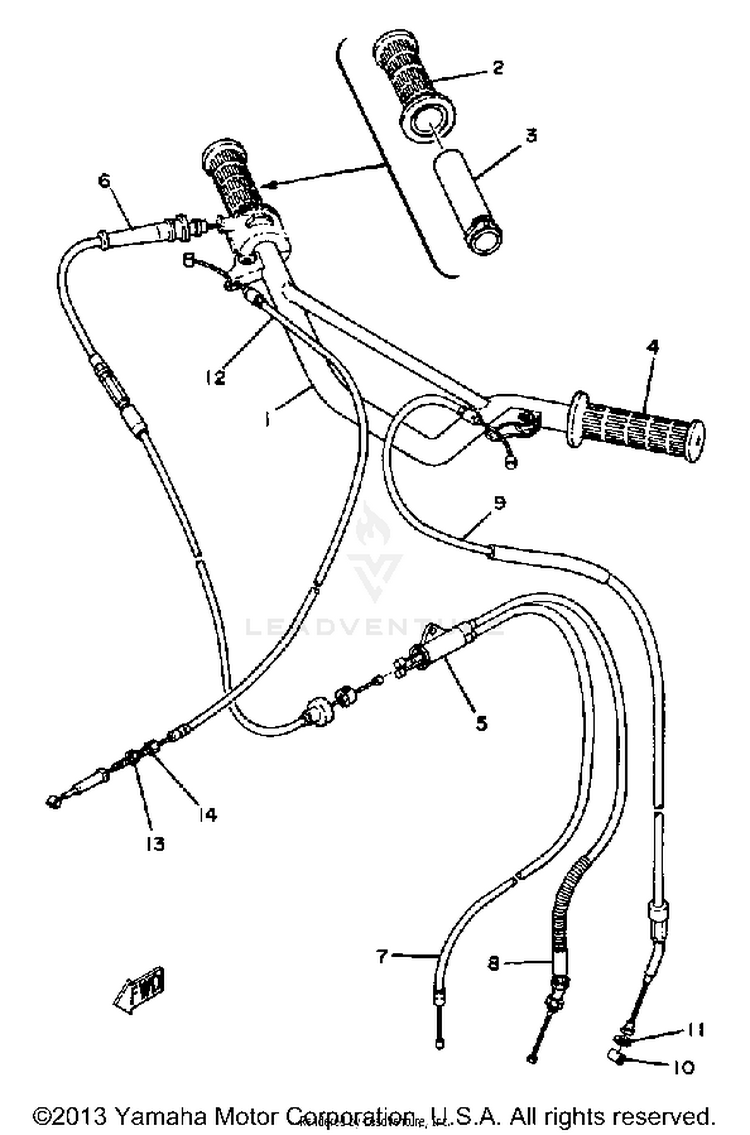

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1367-26111-03-00HANDLEBAR$96.99$75.65Not Shipping
2462-26242-00-00GRIP (R.H.)$17.99$14.75Not Shipping
3434-26243-12-00TUBE, THROTTLE GUIDE$30.99$24.179 In-Stock
4462-26241-00-00GRIP (L.H.)$17.99$14.75Not Shipping
54U1-26261-00-00CONNECTOR, CABLE$43.99$34.3110+ In-Stock
6367-26311-02-00CABLE, THROTTLE 1$66.99$52.252 In-Stock
7336-26312-00-00

(replaces part #
367-26312-01-00)

CABLE, THROTTLE 2$4.70$4.04Not Shipping
8367-26321-02-00CABLE, PUMP$35.99$29.51Not Shipping
9367-26335-02-00CABLE, CLUTCH$66.99$52.251 In-Stock
10164-26363-00-00END, CABLE$8.49$6.627 In-Stock
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
12367-26341-01-00CABLE, BRAKE$55.99$43.67Not Shipping
1390179-06143-00NUT, SPEC''L SHAPE$9.49$7.407 In-Stock
1490123-06011-00BOLT$18.49$14.424 In-Stock
