1981 Yamaha MX80 Seat OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

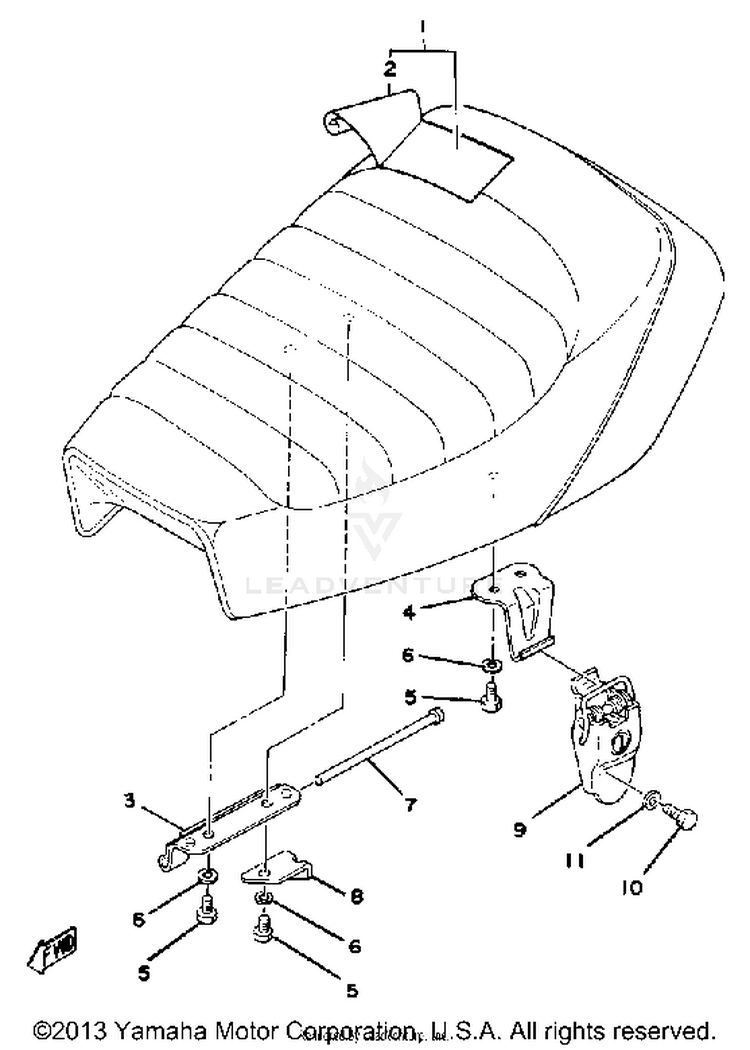

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12A3-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$124.99$97.49Not Shipping
2367-24771-10-00COVER, SM-DBL SEAT$60.96$47.55Not Shipping
3353-24726-00-00HINGE, SEAT$6.66$5.99Not Shipping
4278-24728-00-00BRACKET, SEAT$8.49$7.64Not Shipping
597013-06012-00BOLT$6.49$5.0610+ In-Stock
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
791701-05105-00PIN, CLEVIS (3M7)$1.30$1.17Not Shipping
8374-24768-00-00STOPPER$3.85$3.46Usually ships in 7-10 business days
9367-24760-00-00SEAT LEVER ASSEMBLY$33.99$27.87Usually ships in 7-10 business days
1097017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
