1981 Yamaha MX80 Stand - Footrest OEM Parts Diagram

Submodel MX80H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND - FOOTREST

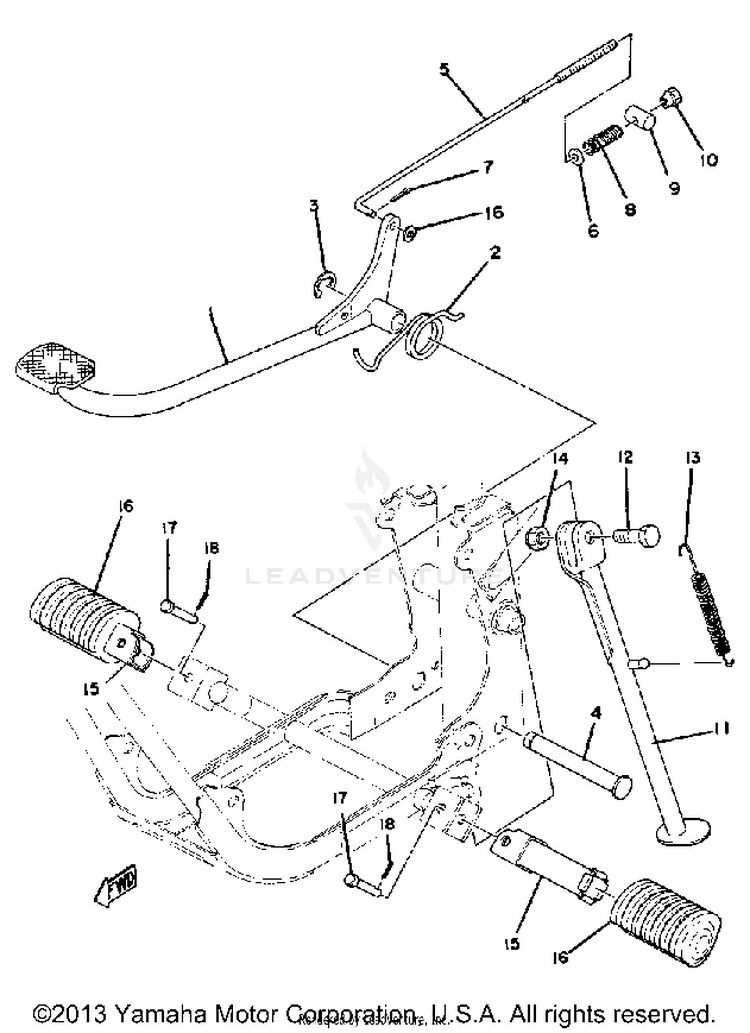

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12F4-27211-00-R4PEDAL, BRAKE | BLACK$35.99$29.51Not Shipping
290508-32056-00SPRING, TORSION$8.49$7.64Usually ships in 7-10 business days
393430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
42A3-27212-00-00SHAFT, BRAKE PEDAL$21.99$18.03Not Shipping
5288-27231-00-00ROD, BRAKE$17.99$14.75Not Shipping
692990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
791490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
890501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
990249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
1090179-06411-00

(replaces part #
90179-06176-00)

NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
11367-27311-02-R4STAND, SIDE | BLACK$47.99$39.35Not Shipping
1290109-08031-00BOLT$9.49$7.403 In-Stock
1390506-29052-00SPRING, TENSION$12.49$9.743 In-Stock
1490185-08055-00NUT, SELF-LOCKING$10.49$8.189 In-Stock
15214-27421-00-00FOOTREST 2$41.99$32.755 In-Stock
16214-27413-00-00COVER, FOOTREST$25.99$20.278 In-Stock
1791701-08038-00PIN$4.45$3.8310+ In-Stock
1891490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
