1997 Yamaha RT180 Crankcase OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

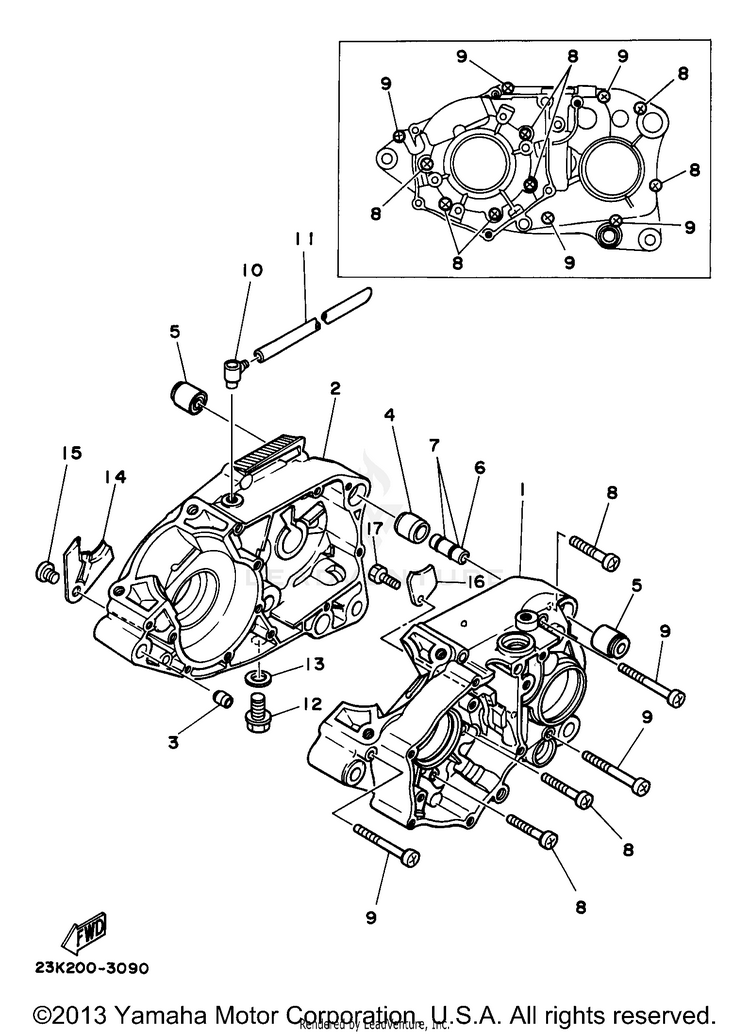

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15L9-E5150-00-00

(replaces part #
017-E5111-01-00)

CRANKCASE SET$413.99$324.44Usually ships in 7-10 business days
25L9-E5150-00-00

(replaces part #
5L9-E5121-00-00)

CRANKCASE SET$413.99$324.44Usually ships in 7-10 business days
399530-10114-00

(replaces part #
91810-02014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
499530-20020-00

(replaces part #
91810-19020-00)

PIN, DOWEL$2.55$2.30Not Shipping
590388-08003-00

(replaces part #
328-15316-00-00)

Damper$19.49$15.206 In-Stock
6401-15317-00-00SPACER, ENGINE MOUNT$15.49$12.70Usually ships in 7-10 business days
793210-11073-00O-RING$8.49$6.6210+ In-Stock
898507-06045-00

(replaces part #
98506-06045-00)

SCREW, PAN HEAD$3.40$2.9210+ In-Stock
998507-06065-00

(replaces part #
98506-06065-00)

SCREW, PAN HEAD$8.49$7.644 In-Stock
10583-15371-00-00

(replaces part #
2H3-E5371-00-00)

BREATHER$7.49$5.8410+ In-Stock
1190445-072G8-00

(replaces part #
90445-07340-00)

HOSE (L310)$32.99$25.734 In-Stock
1290340-12005-00PLUG, STRAIGHT SCREW$9.49$7.406 In-Stock
1390430-12207-00GASKET$8.49$6.6210+ In-Stock
142H3-E5128-00-00HOLDER$1.05$0.94Usually ships in 7-10 business days
1598507-08010-00SCREW, PAN HEAD$9.49$7.406 In-Stock
162TW-E7476-00-00PLATE, COVER$4.70$4.23Not Shipping
1797013-06012-00

(replaces part #
97322-06012-00)

BOLT$6.49$5.0610+ In-Stock
