1997 Yamaha RT180 Fender OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

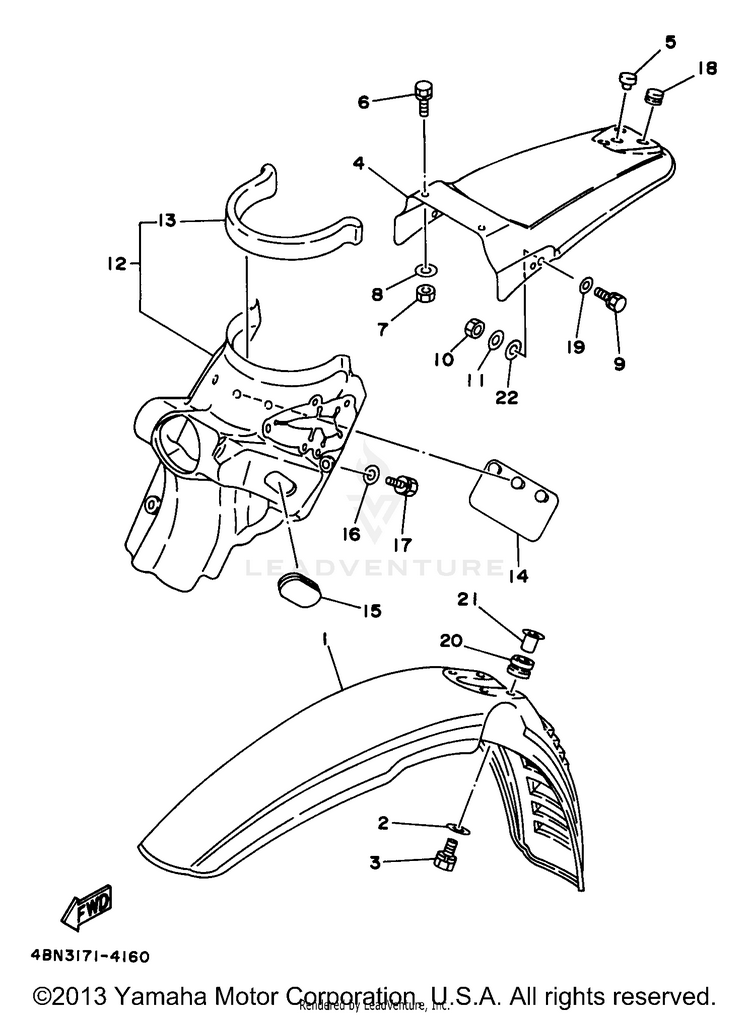

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BN-F1511-10-00FENDER, FRONT | INK BLUE$75.99$59.27Not Shipping
290201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
397502-06425-00BOLT W/WASHER$0.00$0.00Not Shipping
458W-F1611-30-00FENDER, REAR | PURPLISH WHITE SOLID 1$64.99$50.69Not Shipping
590480-16800-00GROMMET$3.55$3.20Usually ships in 7-10 business days
697502-06414-00BOLT,W/WASHER$0.00$0.00Not Shipping
795380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
890201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
997502-08616-09

(replaces part #
97502-08616-00)

BOLT, WITH WASHER$2.35$2.12Usually ships in 7-10 business days
10812-14594-00-00

(replaces part #
98802-08200-00)

NUT$7.49$6.74Usually ships in 7-10 business days
1192907-08200-00WASHER$9.49$7.4010+ In-Stock
1223K-F1620-00-00

(replaces part #
2TW-F1620-00-00)

MUD GUARD COMP. (2TW-F1620-00-0$54.99$42.89Not Shipping
132A6-21639-00-00DAMPER 2$33.99$27.87Usually ships in 7-10 business days
141M1-21621-00-00FLAP$17.99$14.039 In-Stock
1590480-01254-00GROMMET$10.49$8.60Not Shipping
1690201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1797502-06416-00BOLT$0.00$0.00Not Shipping
1890480-16800-00GROMMET$3.55$3.20Usually ships in 7-10 business days
1992990-08600-00

(replaces part #
92902-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
2090480-14198-00GROMMET$10.49$8.1810+ In-Stock
2190387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
2292990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
