1997 Yamaha RT180 Rear Suspension OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SUSPENSION

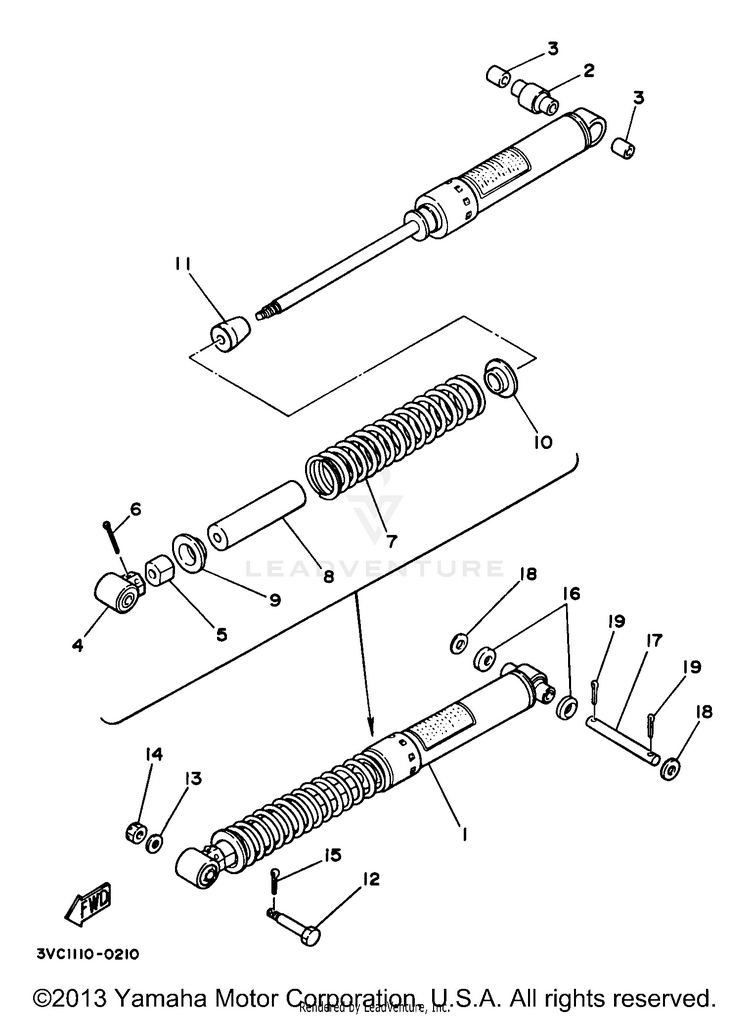

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13VC-F2210-20-00SHOCK ABSORBER ASSEMBLY, REAR$551.99$430.55Usually ships in 7-10 business days
23R4-22226-00-00BUSH, SHOCK ABS LWR$43.99$36.07Usually ships in 7-10 business days
390380-12051-00BUSH, SOLID$17.49$13.645 In-Stock
41M1-22219-01-00BRACKET, UPPER$15.49$12.70Usually ships in 7-10 business days
55L9-F2213-00-00SEAT, SPRING UPPER$30.99$25.41Usually ships in 7-10 business days
691490-30045-00

(replaces part #
91401-30040-00)

PIN, COTTER$3.99$3.59Usually ships in 7-10 business days
790501-90514-00SPRING, COMPRESSION$26.99$22.13Not Shipping
85L9-F2496-00-00SLEEVE, ROD$14.49$11.88Usually ships in 7-10 business days
95L9-F2214-00-00GUIDE, SPRING 1$15.99$13.11Usually ships in 7-10 business days
103VC-F2223-00-00SEAT, SPRING LOWER$19.99$16.39Usually ships in 7-10 business days
112A6-22493-00-00BUMP, STOP$9.28$8.35Not Shipping
1290109-10W11-09

(replaces part #
90109-10W01-00)

BOLT$9.49$8.54Usually ships in 7-10 business days
1390202-10200-00WASHER, WAVE$0.00$0.00Not Shipping
1495380-10700-00

(replaces part #
95302-10700-00)

NUT$6.49$5.0610+ In-Stock
1591490-20035-00

(replaces part #
91402-20025-00)

PIN, COTTER (91401-20030-00)$5.49$4.289 In-Stock
161W1-22128-00-00COVER, THRUST 1$20.99$16.3710+ In-Stock
1790240-12075-00PIN, CLEVIS$10.49$8.60Usually ships in 7-10 business days
1892907-12600-00WASHER, PLATE$1.85$1.596 In-Stock
1991490-30030-00

(replaces part #
91402-30022-00)

PIN, COTTER$8.49$6.6210+ In-Stock
