1997 Yamaha RT180 Front Wheel OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

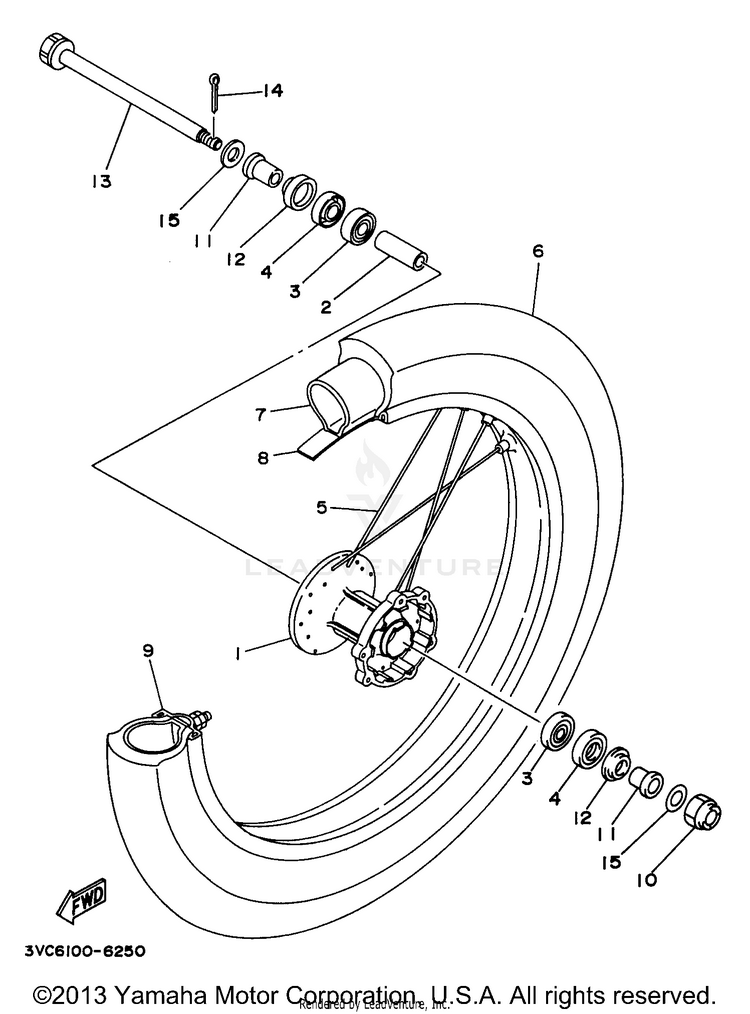

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14AN-F5111-00-98HUB, FRONT | LOW GLOSS BLACK$142.99$111.53Usually ships in 7-10 business days
290560-15290-00SPACER$20.99$16.372 In-Stock
393306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
493102-20281-00

(replaces part #
93102-20827-00)

OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
54LR-25104-00-00SPOKE SET, FRONT$153.99$120.11Usually ships in 7-10 business days
694108-218F5-00TIRE (80/100-21 51P MT21 TT)$173.99$146.41Usually ships in 7-10 business days
794227-21W51-00

(replaces part #
94227-21848-00)

TUBE (80/100-21)$52.99$44.12Usually ships in 7-10 business days
894330-21084-00

(replaces part #
94325-21117-00)

BAND, RIM (1.60-21)$18.49$14.4210+ In-Stock
994418-21884-00

(replaces part #
94418-21W02-00)

RIM (1.85-21)$174.99$136.49Usually ships in 7-10 business days
1090171-14056-00

(replaces part #
90171-14006-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
1190387-15600-00

(replaces part #
90387-158C9-00)

COLLAR$20.99$16.372 In-Stock
12322-25118-00-00

(replaces part #
2TY-F5118-00-00)

COVER, HUB DUST$18.99$14.8110+ In-Stock
1334X-25181-00-00AXLE, WHEEL$74.99$58.49Usually ships in 7-10 business days
1491490-30030-00

(replaces part #
91401-30028-00)

PIN, COTTER$8.49$6.6210+ In-Stock
1590201-15238-00WASHER, PLATE$8.49$6.62Not Shipping
