1997 Yamaha RT180 Front Master Cylinder OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

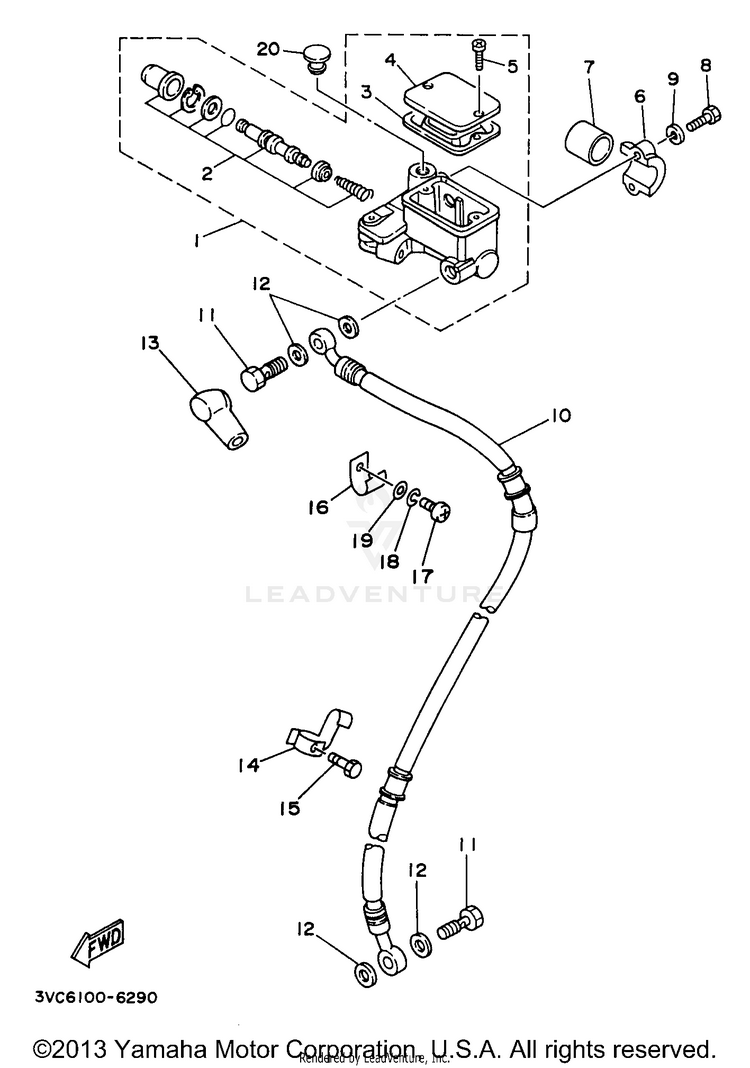

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
139F-25870-00-00MASTER CYLINDER SUB ASSY$194.99$154.02Usually ships in 7-10 business days
25VK-25807-00-00

(replaces part #
59X-W0041-00-00)

CYL KIT,MASTER$76.99$60.05Usually ships in 7-10 business days
355U-25854-00-00DIAPHRAGM, RESERVOIR$30.99$25.412 In-Stock
42KF-25852-02-00

(replaces part #
2KF-25852-01-00)

CAP, RESERVOIR (FRON$29.99$24.59Not Shipping
598707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
790560-22807-00SPACER$0.00$0.00Not Shipping
897017-06025-00

(replaces part #
97326-06025-00)

BOLT$4.55$3.9110+ In-Stock
992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
102TW-F5872-19-00

(replaces part #
2TW-F5872-11-00)

HOSE,BRAKE 1$198.99$155.21Not Shipping
1190401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10886-00WASHER, PLATE$1.30$1.17Not Shipping
133V9-F5862-00-00BOOT, MASTER CYLINDER$8.49$7.64Not Shipping
144BN-F3318-00-00HOLDER, CABLE 1$7.49$6.74Not Shipping
1591317-06010-00BOLT$10.49$8.184 In-Stock
164BN-F5875-00-00HOLDER, BRAKE HOSE 1$6.99$6.29Usually ships in 7-10 business days
1790159-06082-00

(replaces part #
90159-06084-00)

SCREW, WITH WASHER$10.49$8.1810+ In-Stock
1892907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
1990201-06380-00WASHER, PLATE-$0.7110+ In-Stock
202WL-F5825-00-00

(replaces part #
2WL-F151W-00-00)

CAP$1.25$1.12Usually ships in 7-10 business days
