1997 Yamaha RT180 Side Cover OEM Parts Diagram

Submodel RT180J - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

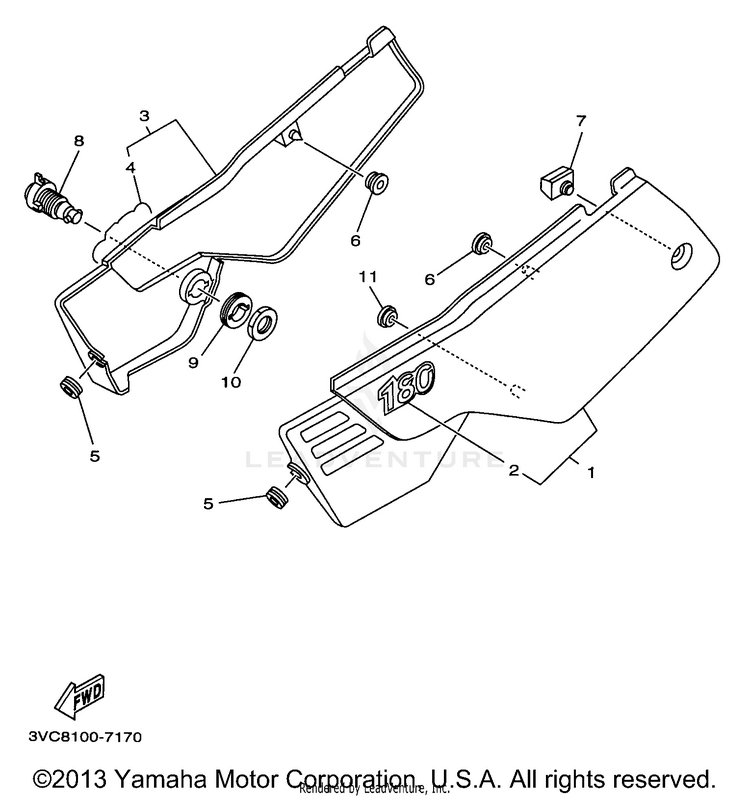

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13VC-F1710-40-00SIDE COVER | PURPLISH WHITE SOLID 1$67.99$53.03Not Shipping
23VC-F1785-00-00GRAPHIC 7$18.99$15.57Usually ships in 7-10 business days
33VC-F1721-20-00

(replaces part #
3VC-F1720-40-00)

SD.CVR.RH | PURPLISH WHITE SOLID 1$88.99$69.41Not Shipping
43VC-F1785-00-00GRAPHIC 7$18.99$15.57Usually ships in 7-10 business days
590480-12053-00GROMMET$8.49$6.6210+ In-Stock
690480-01827-00GROMMET$1.95$1.76Not Shipping
7502-29472-00-00PAD, SEAT$1.85$1.66Not Shipping
83VC-F178K-00-00LOCK ASSEMBLY$25.99$21.31Not Shipping
990480-24186-00GROMMET$9.49$8.541 In-Stock
1090170-22187-00NUT$10.49$8.184 In-Stock
1190480-13014-00

(replaces part #
90480-13197-00)

GROMMET$9.49$7.4010+ In-Stock
