2000 Yamaha TIMBERWOLF 250 4X4 Front Fender OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER

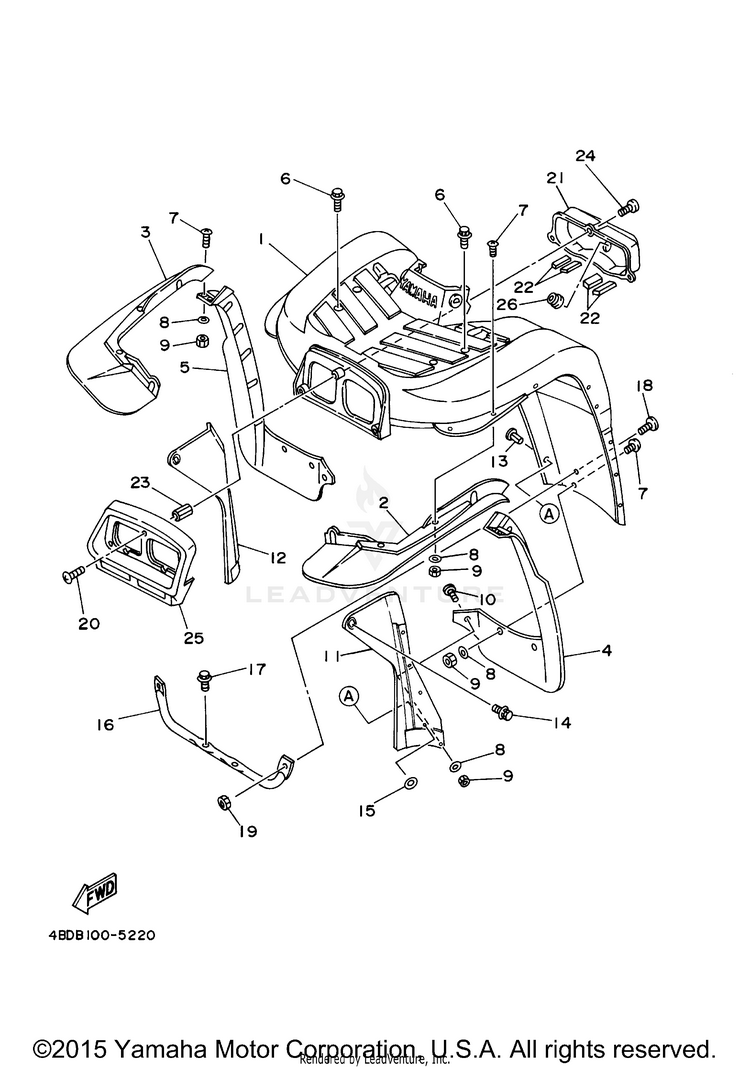

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KD-W2151-40-00FRONT FENDER COMP. | Use for Color PASTEL DEEP GREEN ( PDG / 00K0 )$254.99$198.89Usually ships in 7-10 business days
24BD-21551-00-00FENDER, OVER$86.99$67.85Usually ships in 7-10 business days
34BD-21555-00-00FENDER, OVER 2$82.99$64.73Usually ships in 7-10 business days
44BD-21559-00-00FENDER, OVER 3$78.44$61.18Usually ships in 7-10 business days
54BD-21560-00-00FENDER, OVER 4$92.99$72.53Usually ships in 7-10 business days
690119-08119-00

(replaces part #
90119-08212-00)

BOLT, WITH WASHER$8.49$7.644 In-Stock
790154-05005-00SCREW, BINDING$5.49$4.2810+ In-Stock
890201-05029-00WASHER, PLATE$9.49$7.4010+ In-Stock
995707-05300-00NUT, FLANGE$4.55$3.9110+ In-Stock
1090154-05011-00

(replaces part #
90154-05052-00)

SCREW, BINDING$4.95$4.268 In-Stock
114KD-21552-00-00FENDER, INNER$38.99$31.97Usually ships in 7-10 business days
124KD-21553-00-00FENDER, INNER 2$38.99$31.97Usually ships in 7-10 business days
1390267-63047-00RIVET, BLIND$10.49$8.60Usually ships in 7-10 business days
1490119-06108-00BOLT, WITH WASHER$9.49$8.549 In-Stock
1590201-076J4-00WASHER, PLATE$10.49$8.6010+ In-Stock
164KD-21513-00-00STAY, FENDER 1$104.99$81.89Usually ships in 7-10 business days
1795817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1890149-06184-00SCREW, BINDING$4.85$4.172 In-Stock
1995617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
2090154-05013-00SCREW, BINDING$6.49$5.0610+ In-Stock
212HR-84111-00-00BODY, HEADLIGHT$42.99$35.25Usually ships in 7-10 business days
2283R-14425-00-00

(replaces part #
1UJ-21717-00-00)

DAMPER 1$8.49$7.64Usually ships in 7-10 business days
2390170-05362-00NUT$9.99$8.99Not Shipping
2498907-05014-00SCREW, BIND$9.49$7.403 In-Stock
252HR-23391-00-00PANEL, FRONT$122.99$95.93Not Shipping
2690480-25461-00GROMMET$7.99$7.19Usually ships in 7-10 business days
