2000 Yamaha TIMBERWOLF 250 4X4 Stand Footrest OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

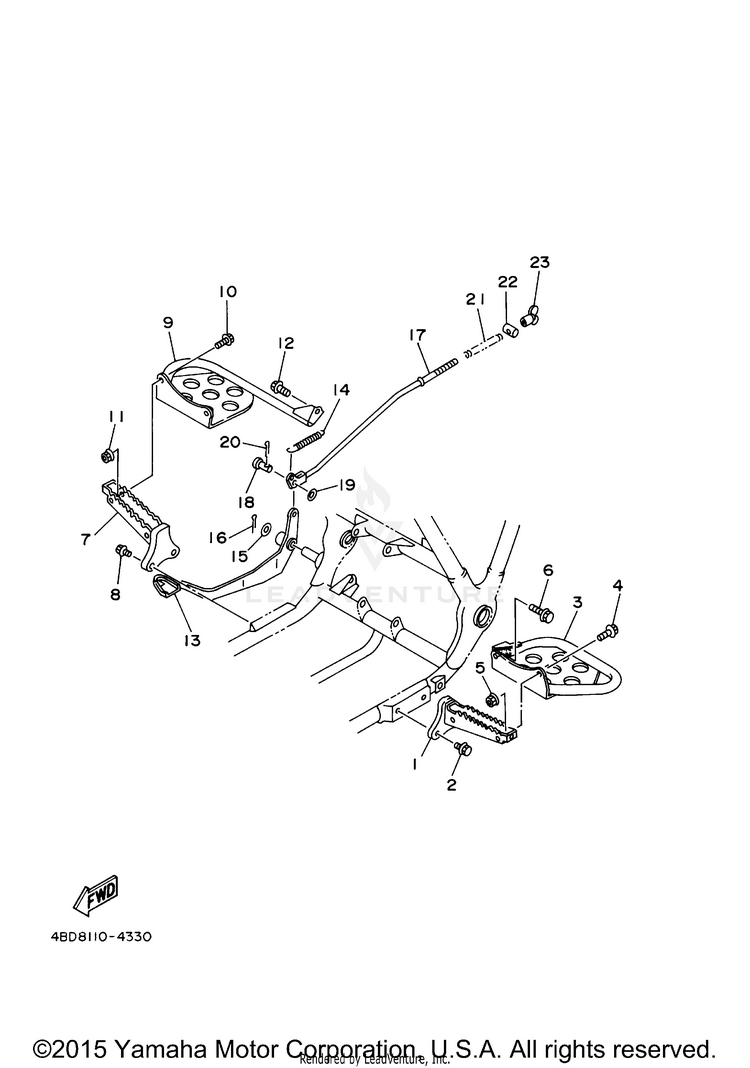

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JM-27411-01-00FOOTREST 1$64.99$50.69Not Shipping
295817-10022-00BOLT, FLANGE$6.99$6.29Usually ships in 7-10 business days
34BD-27445-10-00PLATE 1$78.99$61.61Not Shipping
495817-08016-00BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
595707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
695817-08016-00

(replaces part #
95827-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
74BD-27421-01-00FOOTREST 2$84.99$66.29Usually ships in 7-10 business days
895817-10022-00BOLT, FLANGE$6.99$6.29Usually ships in 7-10 business days
94BD-27446-10-00PLATE 2$68.99$53.81Usually ships in 7-10 business days
1095817-08016-00BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1195707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
1295817-08016-00

(replaces part #
95827-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
134BD-27211-10-00

(replaces part #
4BD-27211-00-00)

PEDAL, BRAKE$111.99$87.35Usually ships in 7-10 business days
1490506-18224-00SPRING, TENSION$6.49$5.062 In-Stock
1590201-15797-00WASHER, PLATE$10.49$8.1810+ In-Stock
1691490-40030-00

(replaces part #
91401-40030-00)

PIN. COTTER$4.60$4.14Usually ships in 7-10 business days
174BD-27231-00-00ROD, BRAKE$32.99$27.05Usually ships in 7-10 business days
1890240-06076-00PIN, CLEVIS$9.49$7.404 In-Stock
1992907-06200-00WASHER$9.49$7.4010+ In-Stock
2091490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
2190501-10245-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
2290249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
2320E-26343-00-00NUT, ADJUSTING$30.99$24.1710+ In-Stock
