2000 Yamaha TIMBERWOLF 250 4X4 Front Suspension Wheel OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

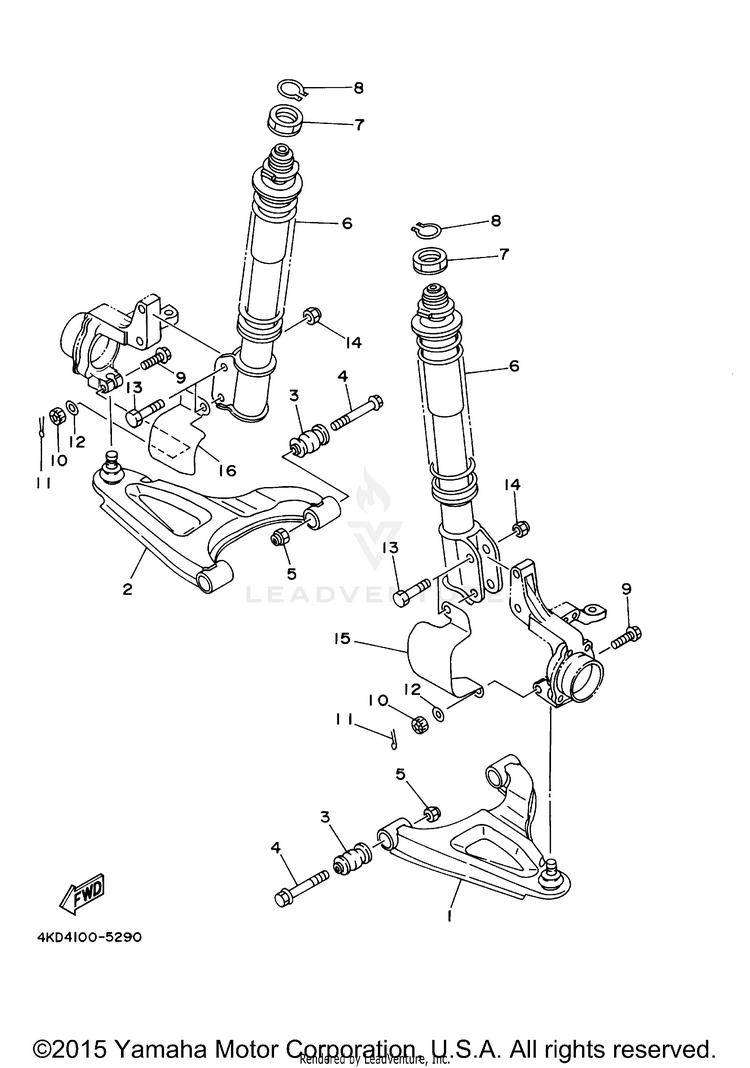

FRONT SUSPENSION WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KD-23570-02-00FRONT LOWER ARM COMP. (LEFT)$160.99$125.57Usually ships in 7-10 business days
24KD-23580-02-00FRONT LOWER ARM COMP. (RIGHT)$160.99$125.57Not Shipping
32HR-23526-00-00BUSH$22.99$17.9310+ In-Stock
490105-10788-00

(replaces part #
90105-10253-00)

BOLT, WASHER BASED$8.49$7.64Usually ships in 7-10 business days
590185-10060-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
64KD-23350-10-33SHOCK ABSORBER ASSY | YB$511.99$399.35Usually ships in 7-10 business days
790179-35002-00

(replaces part #
90179-35625-00)

NUT$11.49$9.42Usually ships in 7-10 business days
893410-32075-00CIRCLIP$10.49$8.1810+ In-Stock
990105-10728-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
1095337-10600-00NUT$10.49$8.182 In-Stock
1191490-20025-00

(replaces part #
91401-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
1290201-100F7-00

(replaces part #
90201-10430-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1390101-12570-00BOLT$8.49$7.64Usually ships in 7-10 business days
1495617-12100-00NUT, U$4.16$3.58
154KD-2331M-00-00COVER, RING$30.99$25.41Not Shipping
164KD-2331N-00-00COVER, RING$32.99$27.05Not Shipping
