2000 Yamaha TIMBERWOLF 250 4X4 Rear Arm OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR ARM

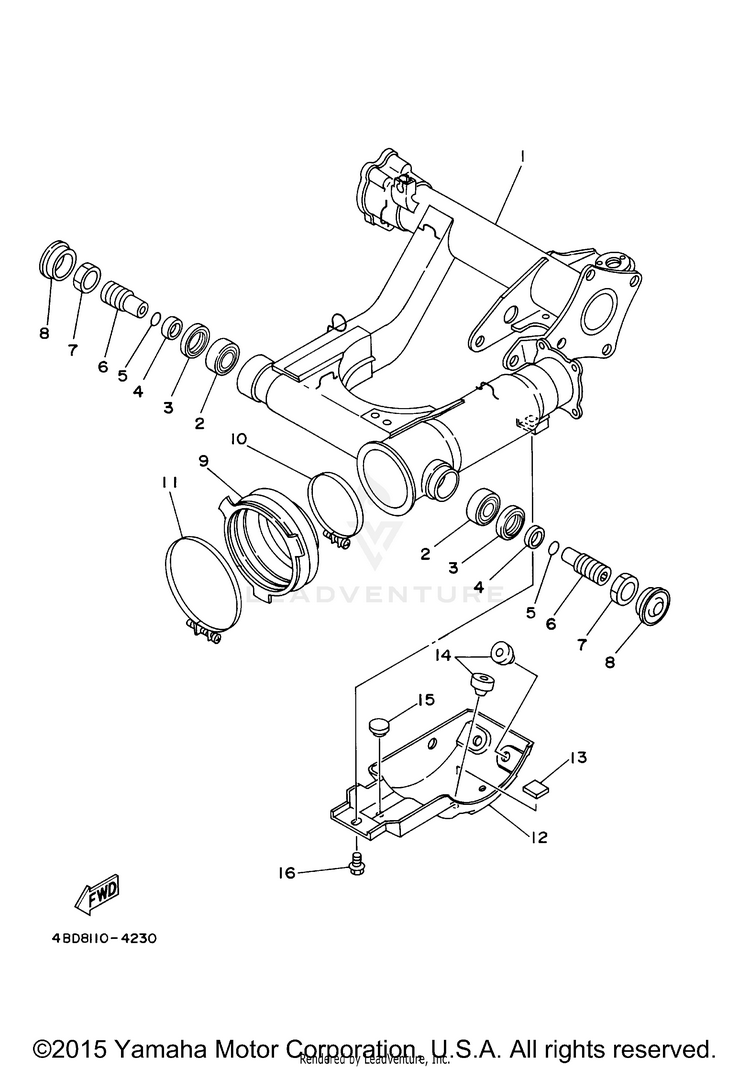

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BD-22110-02-33REAR ARM COMP. | YB$443.99$346.31Usually ships in 7-10 business days
293332-00080-00BEARING$74.99$58.494 In-Stock
393102-25017-00OIL SEAL$6.49$5.064 In-Stock
490387-1707V-00COLLAR$19.49$15.204 In-Stock
593210-17718-00O-RING$8.49$6.627 In-Stock
64WV-22141-00-00

(replaces part #
29U-22141-00-00)

SHAFT, PIVOT$34.99$27.295 In-Stock
71J7-22143-00-00NUT$25.99$20.276 In-Stock
890338-34069-00PLUG$9.49$7.408 In-Stock
94KD-22189-00-00BOOT, RUBBER$61.99$48.35Usually ships in 7-10 business days
1090460-85277-00

(replaces part #
90460-85135-00)

CLAMP, HOSE$18.49$14.425 In-Stock
1190450-99013-00HOSE CLAMP ASSY$19.49$15.202 In-Stock
124BD-2219X-02-00COVER$112.99$88.13Not Shipping
134KD-2214F-00-00DAMPER 1$3.90$3.51Usually ships in 7-10 business days
14116-27114-00-00STOPPER, MAIN STAND$11.99$9.353 In-Stock
15128-27114-00-00STOPPER, MAIN STAND$8.49$6.623 In-Stock
1695817-08012-00

(replaces part #
95807-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
