2000 Yamaha TIMBERWOLF 250 4X4 Shift Shaft OEM Parts Diagram

Submodel TIMBERWOLF 4WD - YFB250FWM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

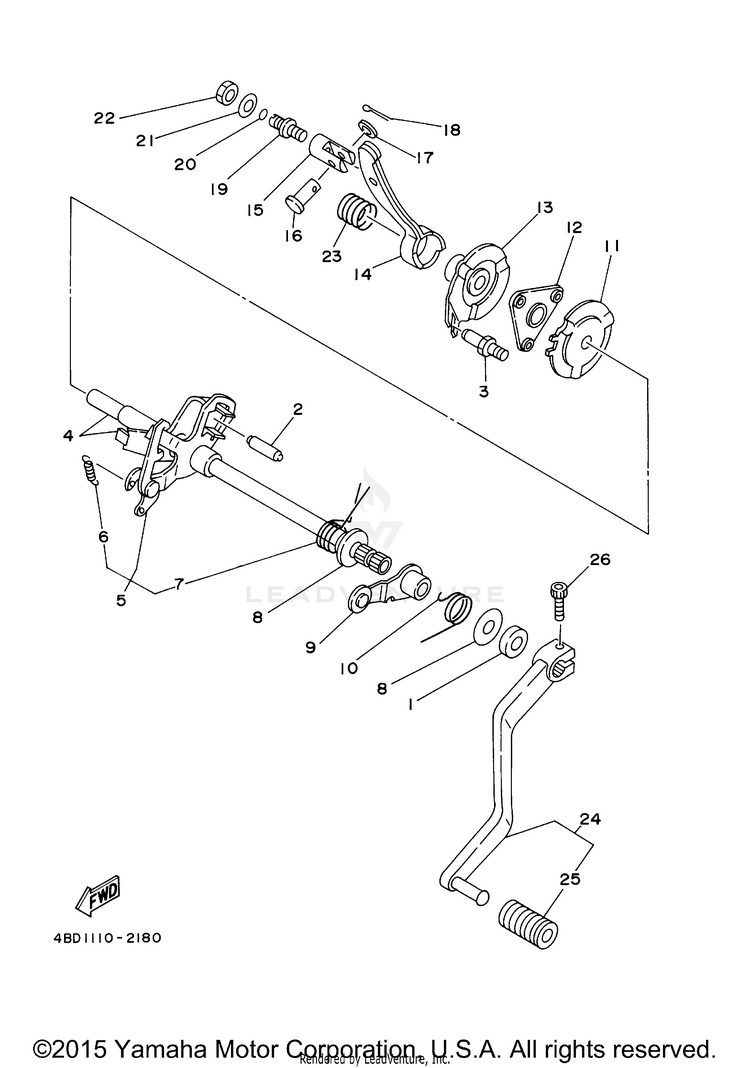

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
293608-30152-00PIN, DOWEL$3.50$3.15Not Shipping
321V-18177-00-00BOLT, STOPPER$16.49$13.52Not Shipping
43GH-18103-01-00SHIFT SHAFT COMP.$50.99$39.77Usually ships in 7-10 business days
521V-18120-00-00SHIFT LEVER ASSY$108.99$85.01Usually ships in 7-10 business days
690506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
790508-29570-00SPRING, TORSION$4.90$4.41Usually ships in 7-10 business days
890201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
94G0-18140-00-00STOPPER LEVER ASSY$44.99$36.89Usually ships in 7-10 business days
1090508-26539-00SPRING, TORSION$9.49$8.54Usually ships in 7-10 business days
1124W-18179-00-00GUIDE$19.99$16.39Not Shipping
1221V-18181-00-00HOLDER, PAWL$24.99$20.49Usually ships in 7-10 business days
1324W-18104-00-00SHIFT GUIDE COMP.$47.99$39.35Usually ships in 7-10 business days
142HT-1817A-00-00ARM, SHIFT 3$27.99$22.95Not Shipping
1521V-18126-00-00PIN, LEVER$24.99$20.49Usually ships in 7-10 business days
1621V-18118-00-00PIN, JOINT$8.99$8.09Usually ships in 7-10 business days
1792907-08600-00WASHER, PLATE$3.25$2.80
1891490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
1921V-18127-00-00STOPPER, SCREW$18.99$15.57Usually ships in 7-10 business days
2093210-07590-00O-RING$8.49$6.624 In-Stock
2190201-08649-00

(replaces part #
90201-08093-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
2295317-08700-00

(replaces part #
95307-08700-00)

NUT$10.49$8.185 In-Stock
2390501-16768-00SPRING, COMPRESSION$1.75$1.58Not Shipping
244KD-18110-00-00SHIFT PEDAL ASSY$54.99$42.89Not Shipping
25132-18113-01-00COVER, CHANGE PEDAL$8.49$6.6210+ In-Stock
2697017-06020-00BOLT$4.06$3.4910+ In-Stock
