2000 Yamaha XT350 Crankcase OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

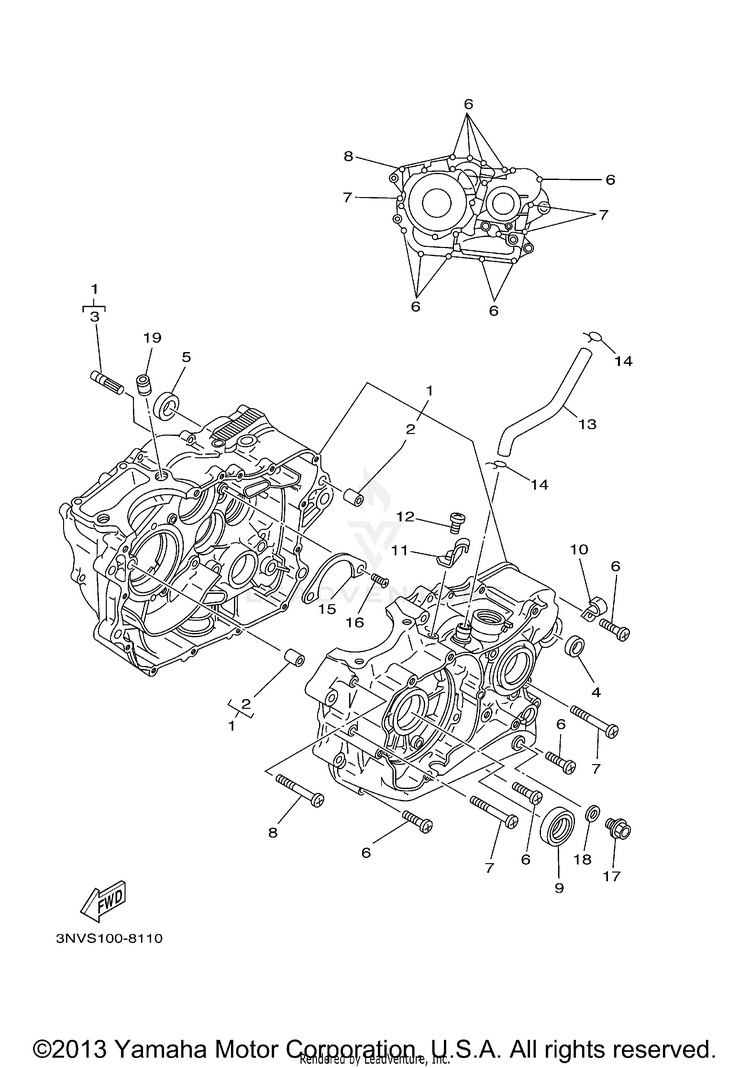

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-56R-11166-00-00PIPE, BREATHER 1 | CA$27.99$22.95Usually ships in 7-10 business days
155V-15100-03-00CRANKCASE ASSEMBLY$722.99$585.89Usually ships in 7-10 business days
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
355V-15668-00-00STOPPER$5.49$4.94Usually ships in 7-10 business days
490387-17009-00

(replaces part #
90387-17783-00)

COLLAR$17.49$13.6410+ In-Stock
590387-172J0-00COLLAR$6.49$5.84Usually ships in 7-10 business days
698517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
798507-06060-00SCREW, PAN HEAD$7.99$6.238 In-Stock
898507-06070-00SCREW, PAN HEAD$9.99$7.797 In-Stock
993102-25305-00OIL SEAL$16.49$12.862 In-Stock
1090465-08277-00CLAMP$12.49$9.742 In-Stock
1151Y-15441-00-00

(replaces part #
30X-15441-00-00)

HOLDER, CLUTCH CABLE$14.99$12.29Usually ships in 7-10 business days
1298507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
1330X-11166-00-00PIPE, BREATHER 1 | 49$15.49$12.70Not Shipping
1490467-14015-00CLIP$9.49$7.407 In-Stock
1530X-15383-00-00PLATE, BEARING COVER$10.99$9.01Usually ships in 7-10 business days
1698707-06016-00SCREW, FLAT HEAD$9.49$7.401 In-Stock
1790340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
18214-11198-01-00GASKET$3.17$2.8910+ In-Stock
1999530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
