2000 Yamaha XT350 Seat OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

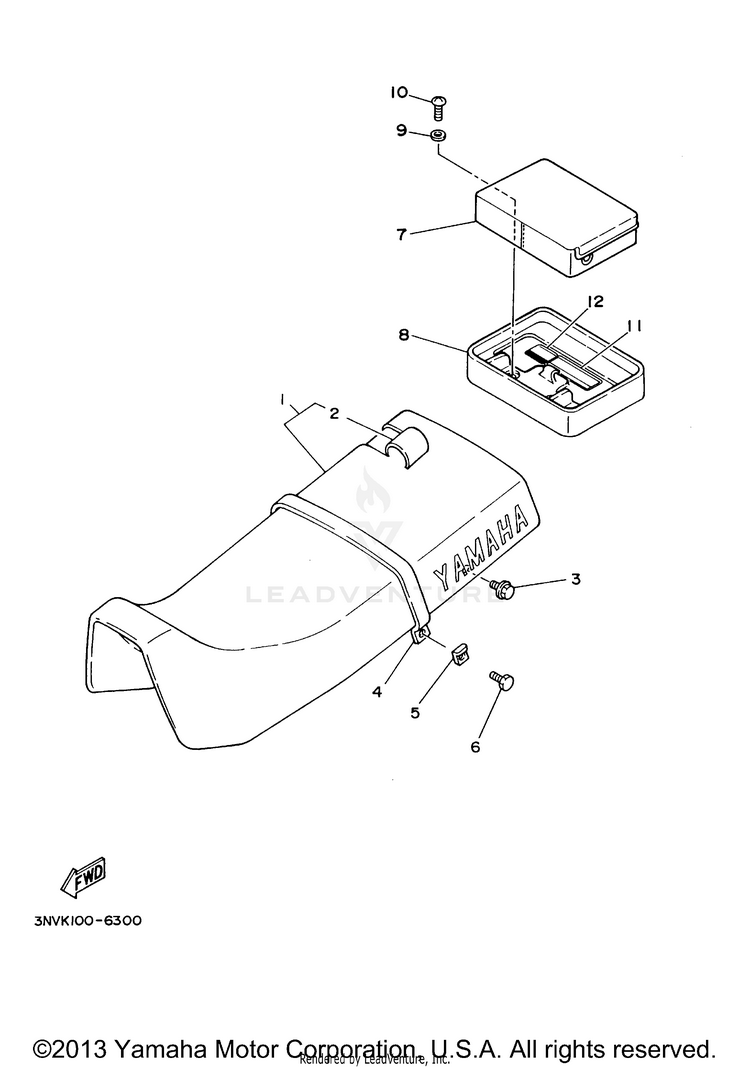

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-24770-70-00SEMI-DOUBLE SEAT ASSEMBLY | Use for Color FRENCH BLUE ( FBL / 00G3 )$319.99$249.59Usually ships in 7-10 business days
230X-2477A-70-00SEAT COVER ASSEMBLY | Use for Color FRENCH BLUE ( FBL / 00G3 )$194.99$152.09Usually ships in 7-10 business days
395817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
430X-24734-70-00BAND, SEAT | Use for Color FRENCH BLUE ( FBL / 00G3 )$29.99$24.59Usually ships in 7-10 business days
592907-08200-00WASHER$9.49$7.4010+ In-Stock
697007-08014-00BOLT$9.49$8.54Usually ships in 7-10 business days
738M-24850-00-00CARRIER BOX ASSEMBLY$139.99$109.19Usually ships in 7-10 business days
830X-24833-00-00BRACKET, CARRIER 2$22.99$18.85Usually ships in 7-10 business days
990201-06557-00WASHER, PLATE$3.55$3.0510+ In-Stock
1098507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
113JJ-28446-A2-00

(replaces part #
3JJ-28446-A0-00)

LABEL, CAUTION$4.95$4.46Usually ships in 7-10 business days
123TB-24877-A1-00

(replaces part #
3TB-24877-A0-00)

LABEL, CAUTION$5.99$5.39Usually ships in 7-10 business days
