2000 Yamaha XT350 Front Wheel OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

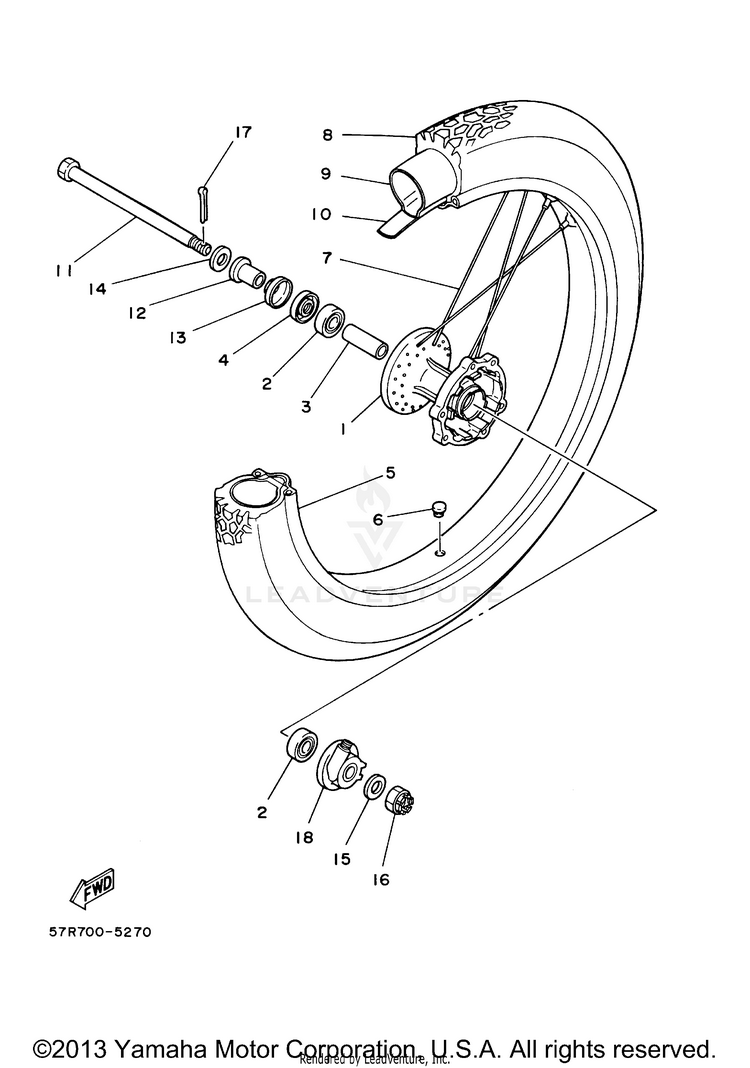

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
134X-25111-02-98HUB, FRONT | LGB$147.99$115.43Usually ships in 7-10 business days
293306-20205-00BEARING$42.99$33.5310+ In-Stock
390560-15290-00SPACER$20.99$16.372 In-Stock
493102-20281-00OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
594416-21430-00

(replaces part #
94416-21419-00)

RIM (1.60-21)$360.99$281.57Usually ships in 7-10 business days
690480-10068-00

(replaces part #
90480-08608-00)

GROMMET$9.49$7.4010+ In-Stock
748Y-25104-00-00SPOKE SET, FRONT$104.99$81.89Not Shipping
894130-213G0-00TIRE (3.00-21-4PR 51P TW25) | BRIDGESTONE$90.99$76.12Not Shipping
994227-21123-00TUBE (MCS 2.75/3.00-21 TR6) | BRIDGESTONE$51.99$40.5510+ In-Stock
1094330-21084-00BAND, RIM (1.60-21) | BRIDGESTONE$18.49$14.4210+ In-Stock
1130X-25181-00-00AXLE, WHEEL$75.99$59.27Not Shipping
1290387-15600-00COLLAR$20.99$16.372 In-Stock
13322-25118-00-00COVER, HUB DUST$18.99$14.8110+ In-Stock
1490201-164H4-00

(replaces part #
90201-163H8-00)

WASHER, PLATE$10.49$8.188 In-Stock
1590201-15785-00WASHER, PLATE$9.49$7.402 In-Stock
1690171-14056-00

(replaces part #
90171-14020-00)

NUT, CASTLE$14.49$11.3010+ In-Stock
1791490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
1834X-25190-01-00GEAR UNIT ASSY$182.99$142.73Usually ships in 7-10 business days
