2000 Yamaha XT350 Exhaust OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

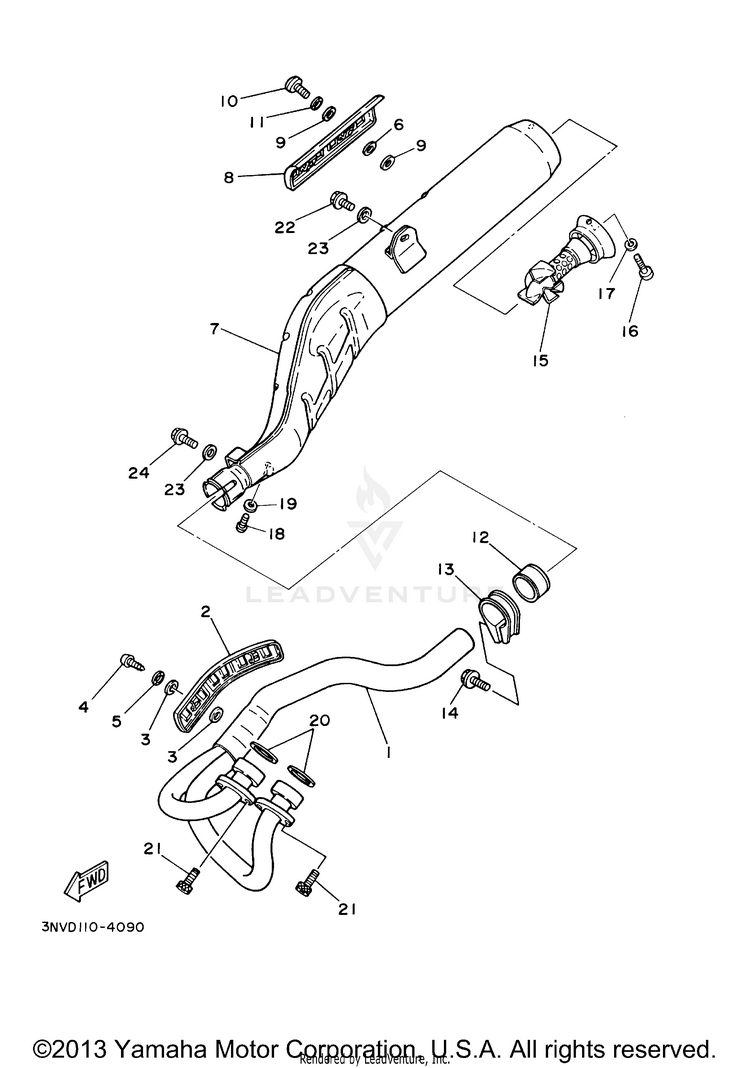

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
157R-14611-00-00PIPE, EXHAUST 1$259.99$202.79Not Shipping
255V-14628-00-00PROTECTOR, EXHAUST PIPE$53.99$42.11Not Shipping
34BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
490164-06017-00SCREW, TAPPING$9.49$8.546 In-Stock
590206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
692907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
72GK-14711-01-00MUFFLER 1$316.99$247.25Usually ships in 7-10 business days
855V-14728-00-00PROTECTOR, MUFFLER 2$48.99$40.17Not Shipping
94BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1098907-06010-00SCREW, BIND$1.80$1.558 In-Stock
1190206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
124EL-14714-00-00GASKET, MUFFLER$30.99$24.171 In-Stock
1330X-14715-00-00BAND, MUFFLER$44.99$36.89Usually ships in 7-10 business days
1495027-08040-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1542U-14752-00-00PIPE, OUTLET$143.99$112.31Not Shipping
1698507-06010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
1792907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
1895817-06008-00

(replaces part #
95807-06008-00)

BOLT, FLANGE$9.49$7.407 In-Stock
1992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
204BR-14613-00-00GASKET, EXHAUST PIPE$8.49$6.6210+ In-Stock
2191317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
2295817-08014-00BOLT, FLANGE$2.50$2.1510+ In-Stock
2390201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
2495817-08020-00BOLT, FLANGE$10.49$8.181 In-Stock
