2000 Yamaha XT350 Taillight OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

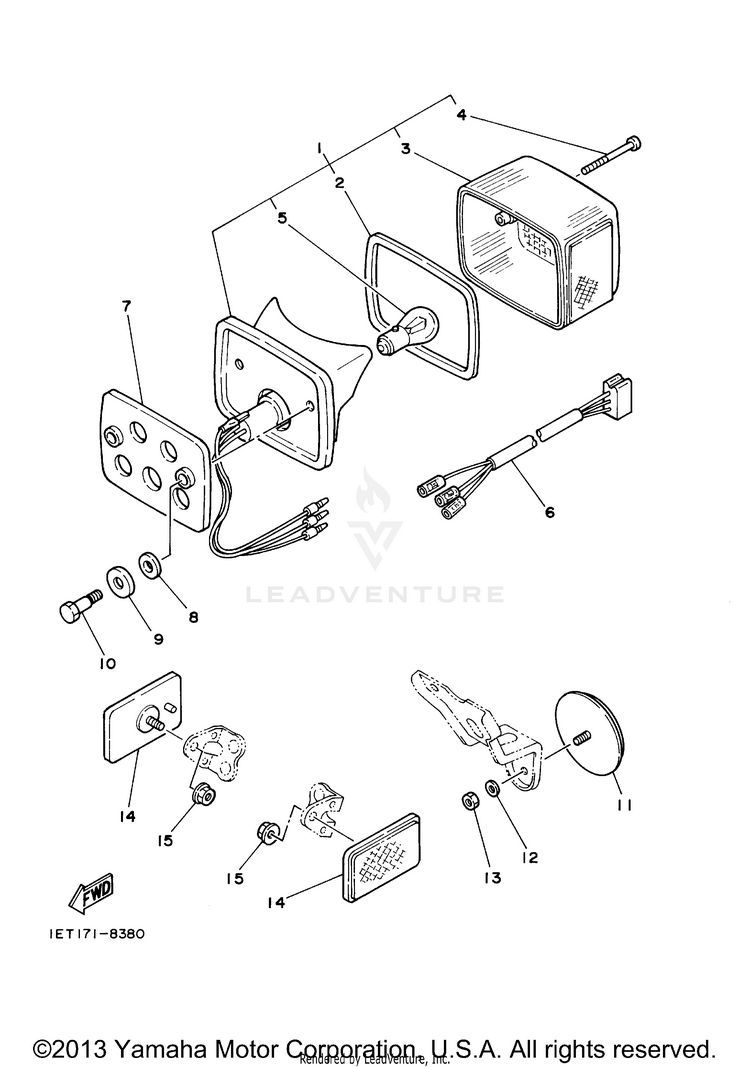

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W9-84710-61-00TAILLIGHT UNIT ASSY$119.99$93.59Usually ships in 7-10 business days
21M1-84523-60-00GASKET, LENS$14.49$11.303 In-Stock
31M1-84521-60-00LENS, TAILLIGHT$43.99$34.315 In-Stock
45BF-8433E-00-00

(replaces part #
1M1-84524-60-00)

SCREW, ADJUSTING$8.49$6.6210+ In-Stock
5256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
642U-84517-00-00CORD, TAILLIGHT$18.99$15.57Not Shipping
74L0-84753-00-00DAMPER$16.49$13.52Usually ships in 7-10 business days
890201-083A0-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
990209-08125-00WASHER$12.49$10.24Usually ships in 7-10 business days
1090109-06005-00BOLT$8.49$7.64Usually ships in 7-10 business days
11449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
1290201-05725-00WASHER, PLATE$10.49$8.606 In-Stock
1395317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
1423V-85110-00-00

(replaces part #
20G-85110-00-00)

REFLECTOR ASSY$30.99$24.174 In-Stock
1595707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
