2000 Yamaha XT350 Shift Cam Fork OEM Parts Diagram

Submodel XT350 - XT350MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

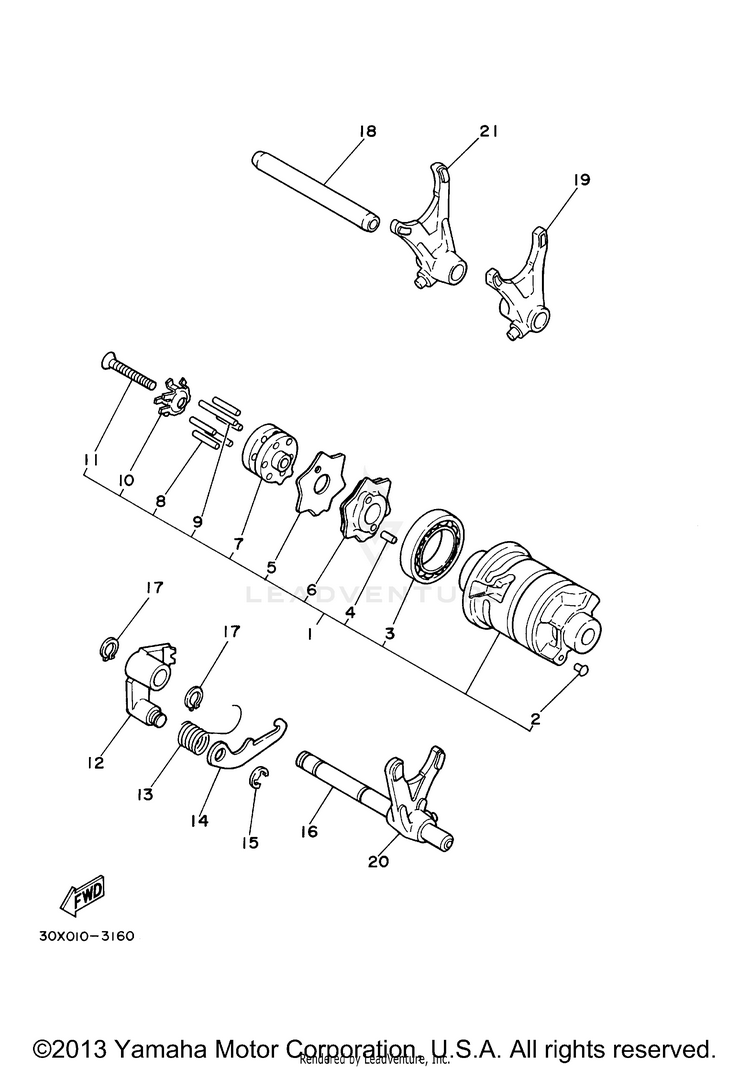

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-18540-00-00SHIFT CAM ASSEMBLY$237.99$185.63Usually ships in 7-10 business days
2136-18542-00-00POINT, NEUTRAL$7.49$6.74Usually ships in 7-10 business days
393306-90501-00BEARING$45.99$35.8710+ In-Stock
493604-08071-00PIN, DOWEL$9.49$7.4010+ In-Stock
530X-18161-00-00GUIDE, PLATE STOPPER$3.35$3.02Usually ships in 7-10 business days
630X-18141-00-00PLATE, STOPPER$29.99$24.59Usually ships in 7-10 business days
730X-18185-00-00SEGMENT$50.99$39.77Usually ships in 7-10 business days
893604-18100-00PIN, DOWEL$3.85$3.4610+ In-Stock
993604-29151-00PIN, DOWEL$8.49$7.64Usually ships in 7-10 business days
1030X-18561-02-00PLATE, SIDE 1$8.99$8.09Not Shipping
1190151-06013-00SCREW, COUNTERSUNK$10.49$8.182 In-Stock
123Y1-18122-00-00LEVER, SHIFT 2$28.99$23.77Usually ships in 7-10 business days
1390508-12430-00SPRING, TORSION$2.20$1.98Usually ships in 7-10 business days
142K7-18151-00-00LEVER, SHIFT 3$14.49$11.88Usually ships in 7-10 business days
1599080-07600-00

(replaces part #
99001-07600-00)

CIRCLIP$3.65$3.147 In-Stock
164DN-18531-00-00BAR, SHIFT FORK GUIDE 1$15.49$12.70Usually ships in 7-10 business days
1799009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
184DN-18535-00-00BAR, SHIFT FORK GUIDE 2$14.49$11.88Usually ships in 7-10 business days
1930X-18511-00-00FORK, SHIFT 1$40.99$33.61Usually ships in 7-10 business days
2030X-18512-00-00FORK, SHIFT 2$44.99$36.89Usually ships in 7-10 business days
2130X-18513-00-00FORK, SHIFT 3$44.99$36.89Usually ships in 7-10 business days
