2007 Yamaha TW200 Camshaft Chain OEM Parts Diagram

Submodel TW200 CA - TW200W1C - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

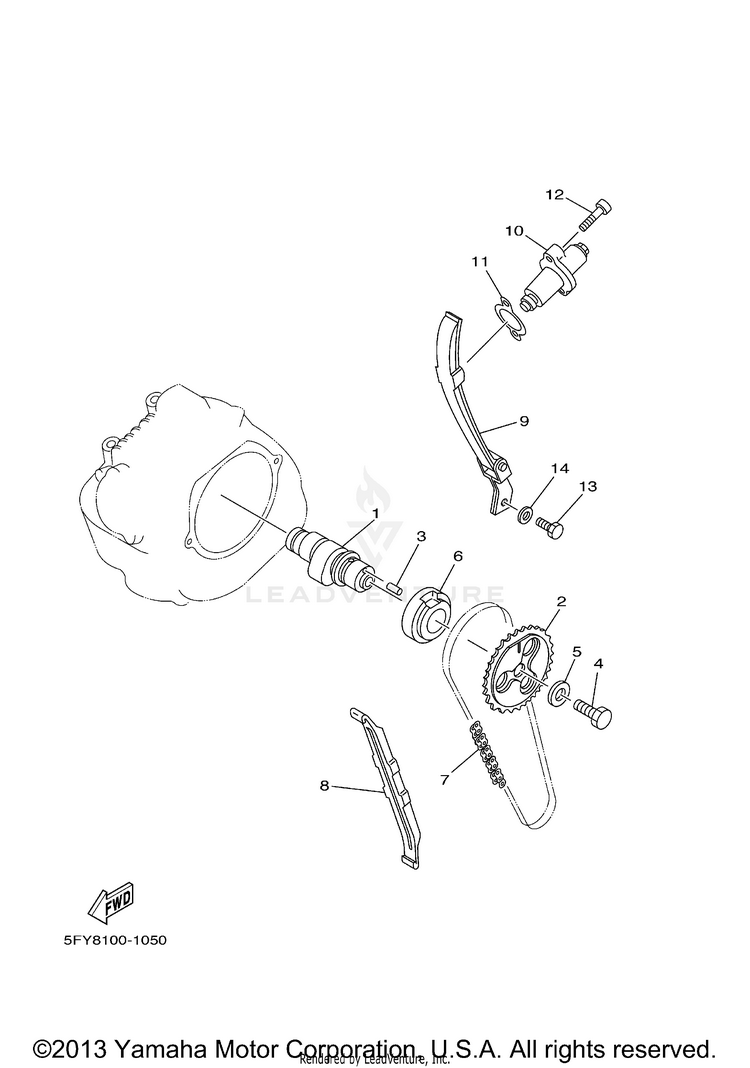

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
136X-12171-01-00

(replaces part #
36X-12171-00-00)

CAMSHAFT 1$166.99$130.25Usually ships in 7-10 business days
21KH-12176-00-00SPROCKET, CAM CHAIN$125.99$98.27Usually ships in 7-10 business days
393604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
490101-10303-00BOLT$10.49$8.184 In-Stock
590201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
690387-255F3-00COLLAR$49.99$38.994 In-Stock
794580-41104-00CHAIN (DID25SH 104L)$81.99$63.955 In-Stock
85H0-12231-01-00

(replaces part #
5H0-12231-00-00)

GUIDE, STOPPER 1$26.99$22.44Not Shipping
95N0-12241-01-00

(replaces part #
5N0-12241-00-00)

GUIDE, STOPPER 2$62.99$49.134 In-Stock
103GC-12210-10-00TENSIONER ASSY, CAM CHAIN$125.99$98.274 In-Stock
114FM-12213-00-00GASKET, TENSIONER CASE$9.49$7.4010+ In-Stock
1291317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1397017-06016-00

(replaces part #
97027-06016-00)

BOLT$9.49$7.405 In-Stock
1492907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
