2007 Yamaha TW200 Meter OEM Parts Diagram

Submodel TW200 CA - TW200W1C - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

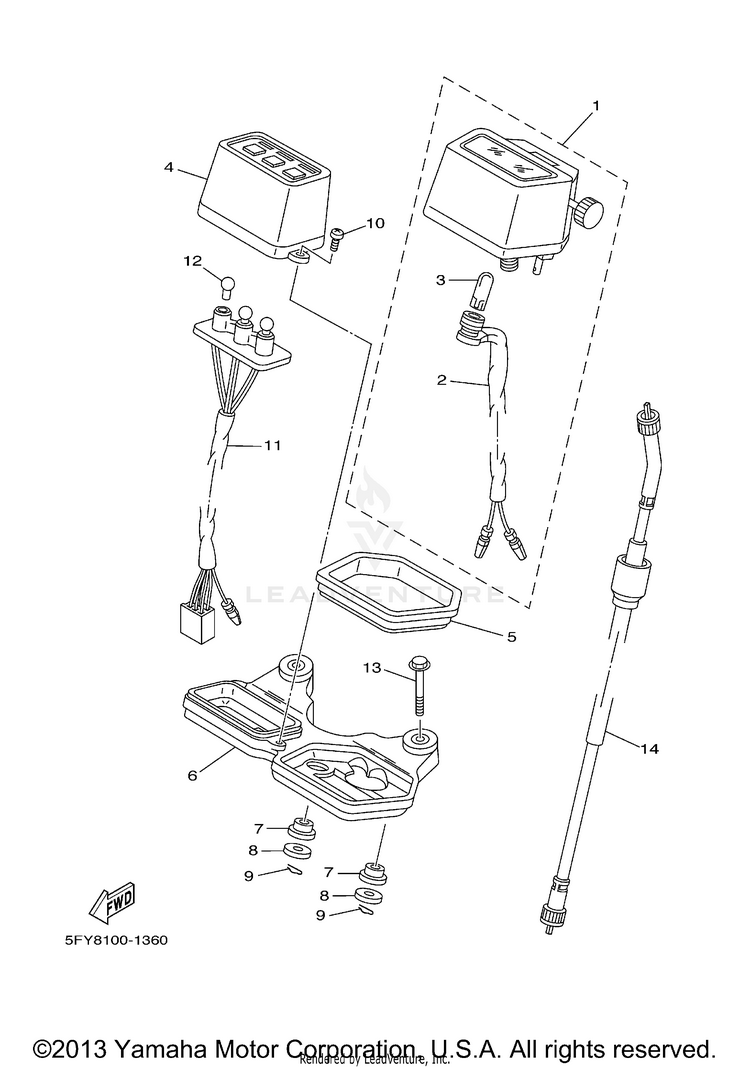

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-83510-B1-00

(replaces part #
2JX-83510-B0-00)

SPEEDOMETER ASSY$264.99$206.69Usually ships in 7-10 business days
25E2-83509-20-00

(replaces part #
2JX-83536-A0-00)

SOCKET CORD ASSY$31.99$26.23Usually ships in 7-10 business days
34G1-84744-00-XXBULB (12V-3.4W T10)$4.80$4.32Usually ships in 7-10 business days
45EK-83568-00-00PILOT BOX, UPPER$83.99$65.514 In-Stock
55Y1-83513-00-00DAMPER$36.99$28.852 In-Stock
615A-83519-00-00BRACKET, METER$58.99$46.011 In-Stock
71M1-83526-01-00

(replaces part #
1M1-83526-00-00)

DAMPER 2$5.99$4.678 In-Stock
890201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
990468-10050-00

(replaces part #
437-83525-00-00)

CLIP$3.05$2.6210+ In-Stock
1090164-04008-00SCREW, TAPPING$10.49$8.60Usually ships in 7-10 business days
1115A-83509-01-00

(replaces part #
15A-83509-00-00)

SOCKET CORD ASSY$36.99$30.33Usually ships in 7-10 business days
12123-83516-21-XX

(replaces part #
123-83516-21-00)

BULB (12V-3.4W)$4.75$4.08Not Shipping
1395817-06040-00

(replaces part #
95807-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
145LB-83550-00-00SPEEDOMETER CABLE ASSY$41.99$32.752 In-Stock
