2007 Yamaha TW200 Cylinder Head OEM Parts Diagram

Submodel TW200 CA - TW200W1C - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

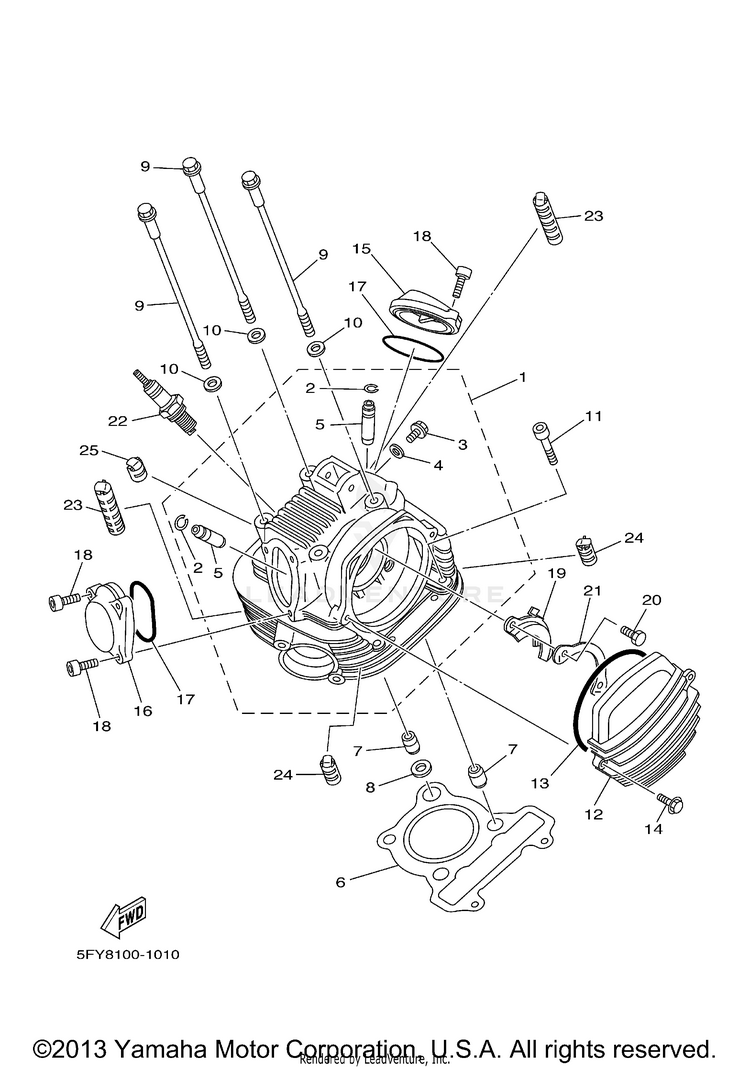

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
115A-11110-04-00CYLINDER HEAD ASSY$736.99$574.85Usually ships in 7-10 business days
293440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
390153-06029-00SCREW, HEXAGON$9.49$7.40
490430-06014-00GASKET$8.99$7.0110+ In-Stock
55H0-11133-11-00GUIDE, INTAKE VALVE$74.99$58.492 In-Stock
61NU-11181-00-00GASKET, CYLINDER HEAD 1$50.99$39.778 In-Stock
799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
890430-14131-00GASKET$9.49$7.4010+ In-Stock
990105-08160-00

(replaces part #
90105-08195-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
1090201-080L7-00

(replaces part #
90201-08609-00)

WASHER, PLATE$4.05$3.4810+ In-Stock
1191317-08045-00BOLT, HEX. SOCKET HEAD$9.49$7.405 In-Stock
1215A-11185-00-00COVER, CYLINDER HEAD SIDE 3$76.99$60.05Usually ships in 7-10 business days
1393211-05471-00O-RING$16.49$12.8610+ In-Stock
1495027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
1515A-11186-00-00COVER, CYLINDER HEAD SIDE 2$41.99$34.43Usually ships in 7-10 business days
1615A-11187-00-00COVER, CYLINDER HEAD SIDE 3$31.99$26.23Usually ships in 7-10 business days
1793210-57634-00O-RING$15.49$12.0810+ In-Stock
1891317-06018-00BOLT, HEX. SOCKET HEAD$9.49$7.4010+ In-Stock
195H0-1111F-00-00PLATE$26.99$22.13Usually ships in 7-10 business days
2097017-06012-00

(replaces part #
97007-06012-00)

BOLT$4.05$3.4810+ In-Stock
2190215-06184-00WASHER, LOCK$11.49$8.968 In-Stock
22DR8-EA000-00-00

(replaces part #
NGK-DR8EA-00-00)

PLUG, SPARK (NGK DR8EA) | UR-$4.5310+ In-Stock
2315A-11162-00-00ABSORBER 2$22.99$17.932 In-Stock
245H0-11161-00-00

(replaces part #
5H0-11162-00-00)

ABSORBER 1$10.99$8.572 In-Stock
2515A-11162-00-00

(replaces part #
15A-11161-01-00)

ABSORBER 2$22.99$17.932 In-Stock
