2007 Yamaha TW200 Rear Suspension OEM Parts Diagram

Submodel TW200 CA - TW200W1C - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SUSPENSION

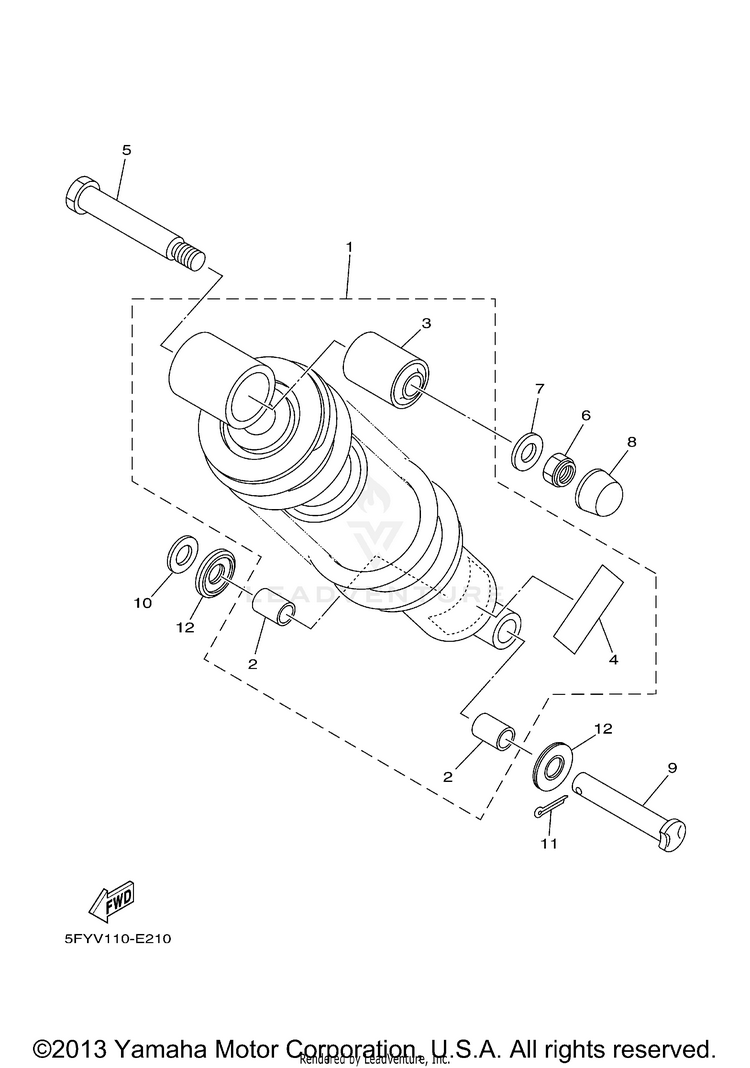

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15FY-22210-00-P0SHOCK ABSORBER ASSY, REAR | LRYS1 FOR PWS1$406.99$337.98Usually ships in 7-10 business days
290380-12051-00BUSH, SOLID$17.49$13.645 In-Stock
31M1-22216-00-00BUSH, REAR SHOCK ABSORBER$33.99$27.87Usually ships in 7-10 business days
44AA-22259-80-00LABEL, WARNING$14.49$11.30
590109-100E2-00BOLT$8.49$7.64Usually ships in 7-10 business days
695617-10100-00NUT, U$9.49$7.405 In-Stock
790201-10M05-00

(replaces part #
90201-100E9-00)

WASHER, PLATE$6.49$5.066 In-Stock
850W-25188-00-00CAP$4.60$4.14Usually ships in 7-10 business days
990240-12075-00PIN, CLEVIS$10.49$8.60Usually ships in 7-10 business days
1090201-12047-00

(replaces part #
90201-12749-00)

WASHER, PLATE$9.49$7.404 In-Stock
1191401-30025-00PIN, COTTER$9.49$7.409 In-Stock
1230X-22129-00-00COVER, THRUST 2$22.99$18.85Usually ships in 7-10 business days
