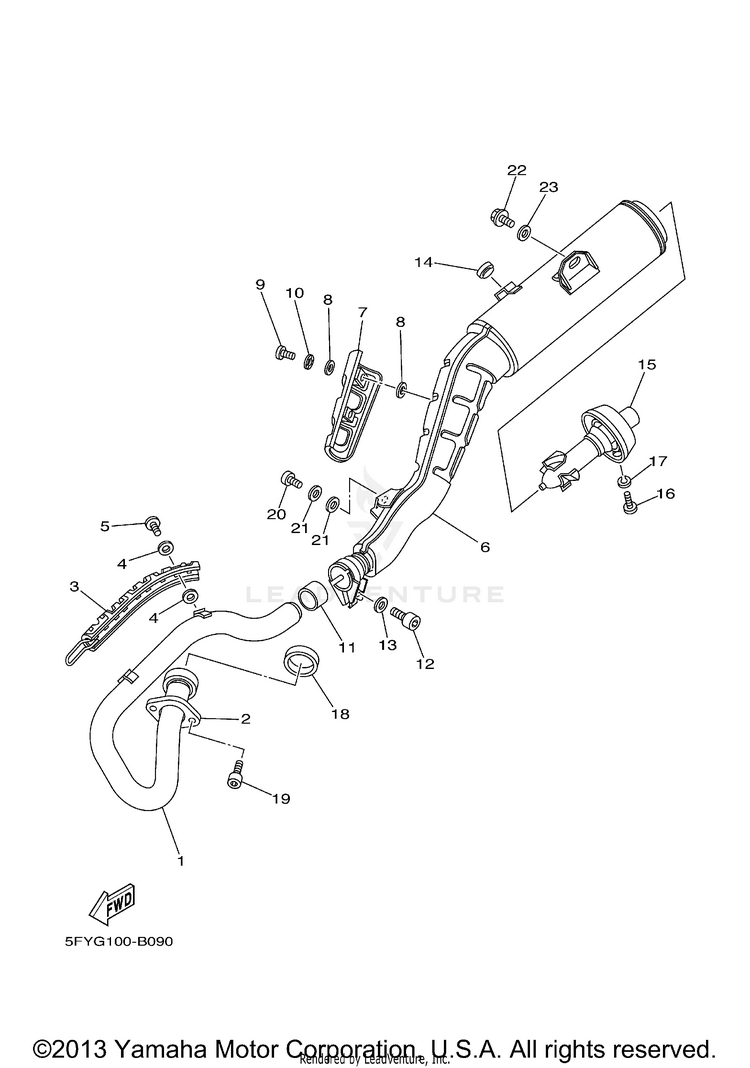

2007 Yamaha TW200 Exhaust OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2JX-14611-03-00 (replaces part # 2JX-14611-02-00)	PIPE, EXHAUST 1	$52.99	$41.33	Usually ships in 7-10 business days
2	5H0-14612-01-00	NUT, RING	$17.99	$14.03	3 In-Stock
3	5LB-14628-02-00 (replaces part # 5LB-14628-00-00)	PROTECTOR, EXHAUST PIPE	$50.99	$39.77	Usually ships in 7-10 business days
4	90201-05015-00	WASHER, PLATE	$9.49	$7.40	9 In-Stock
5	98907-06010-00	SCREW, BIND	$1.80	$1.55	8 In-Stock
6	2JX-14711-10-00	MUFFLER 1	$479.99	$374.39	Usually ships in 7-10 business days
7	2JX-14728-00-00	PROTECTOR, MUFFLER 2	$126.99	$99.05	Usually ships in 7-10 business days
8	90202-05191-00	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
9	98907-06010-00	SCREW, BIND	$1.80	$1.55	8 In-Stock
10	90206-06090-00	WASHER, WAVE	$9.49	$7.40	10+ In-Stock
11	3YF-14714-00-00	GASKET, MUFFLER	$39.99	$31.19	10+ In-Stock
12	91317-08025-00	BOLT	$9.49	$7.40	7 In-Stock
13	92907-08600-00	WASHER, PLATE	$3.25	$2.80
14	22W-24181-00-00	DAMPER, LOCATING 1	$7.49	$5.84	10+ In-Stock
15	1RH-14752-01-00	PIPE, OUTLET	$153.99	$120.11	Usually ships in 7-10 business days
16	98507-06010-00	SCREW, PAN HEAD	$3.85	$3.31	8 In-Stock
17	92907-06600-00	WASHER, PLATE	$1.00	$0.99	10+ In-Stock
18	4BE-14613-00-00	GASKET, EXHAUST PIPE	$10.99	$8.57	10+ In-Stock
19	91317-06020-00	BOLT, HEX. SOCKET HEAD	$2.75	$2.36	10+ In-Stock
20	91317-08016-00	BOLT	$9.49	$7.40	10+ In-Stock
21	90201-08326-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
22	95817-08016-00	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
23	90201-08326-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
