2007 Yamaha TW200 Crankcase Cover 1 OEM Parts Diagram

Submodel TW200 CA - TW200W1C - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

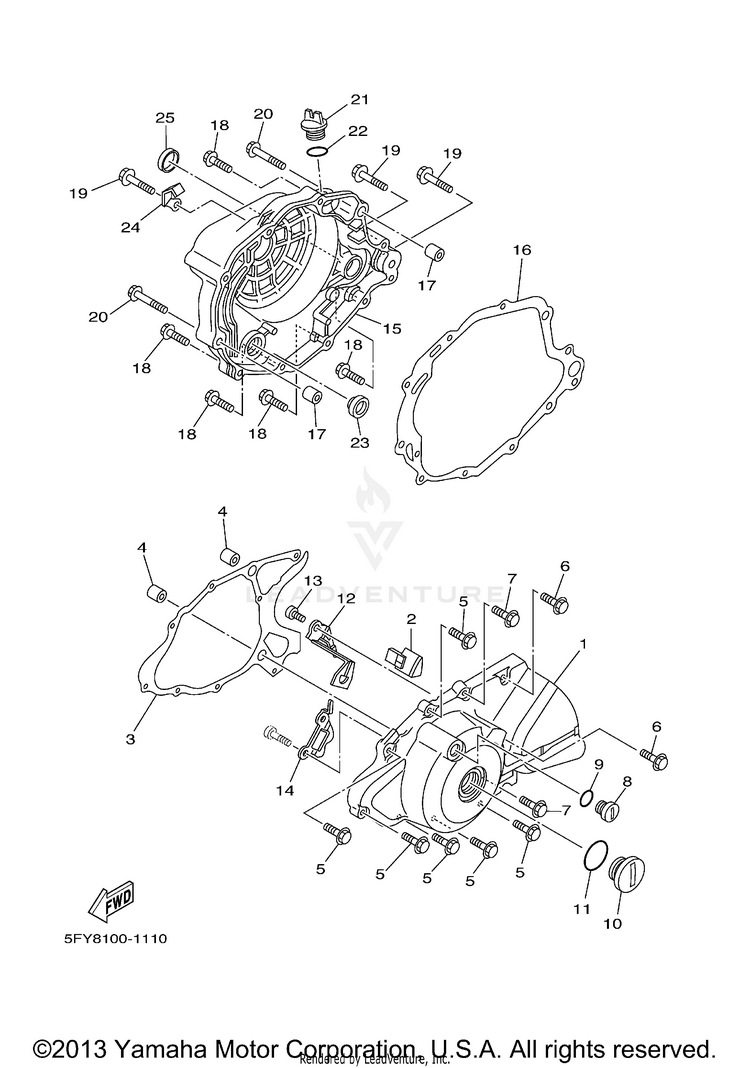

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EK-15410-00-00CRANKCASE COVER ASSY 1$383.99$299.51Usually ships in 7-10 business days
22JX-15377-00-00GUIDE, INLET$35.99$28.072 In-Stock
33AW-15451-03-00GASKET, CRANKCASE COVER 1$18.99$14.8110+ In-Stock
499530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
595027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
695027-06025-00

(replaces part #
90105-06017-00)

BOLT, FLANGE$4.16$3.5810+ In-Stock
795027-06035-00

(replaces part #
90105-06014-00)

BOLT, FLANGE$2.40$2.0610+ In-Stock
890340-14117-00PLUG, STRAIGHT SCREW$16.49$12.866 In-Stock
993210-14369-00O-RING$8.49$6.6210+ In-Stock
1090340-32080-00PLUG, STRAIGHT SCREW$35.99$28.072 In-Stock
1193210-32172-00O-RING$8.49$6.6210+ In-Stock
1290465-08364-00CLAMP$26.99$22.13Usually ships in 7-10 business days
1391317-06010-00BOLT$10.49$8.184 In-Stock
1490462-16096-00

(replaces part #
90465-16187-00)

CLAMP$6.49$5.84Not Shipping
1515A-15431-01-00COVER, CRANKCASE 3$205.99$160.67Usually ships in 7-10 business days
164BE-15462-00-00GASKET, CRANKCASE COVER 3$37.99$29.6310+ In-Stock
1799530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
1895027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
1995027-06035-00BOLT, FLANGE$2.40$2.0610+ In-Stock
2095027-06045-00BOLT, FLANGE$3.55$3.058 In-Stock
213Y1-15363-10-00

(replaces part #
3Y1-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
2293210-19123-00O-RING$8.99$7.0110+ In-Stock
233Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
2490462-08225-00CLAMP$9.49$8.54Usually ships in 7-10 business days
2555X-15167-00-00PLUG, BLIND 1$14.49$11.88Usually ships in 7-10 business days
