2016 Yamaha SR400 Crankshaft Piston OEM Parts Diagram

Submodel SR400 - SR400GCB - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

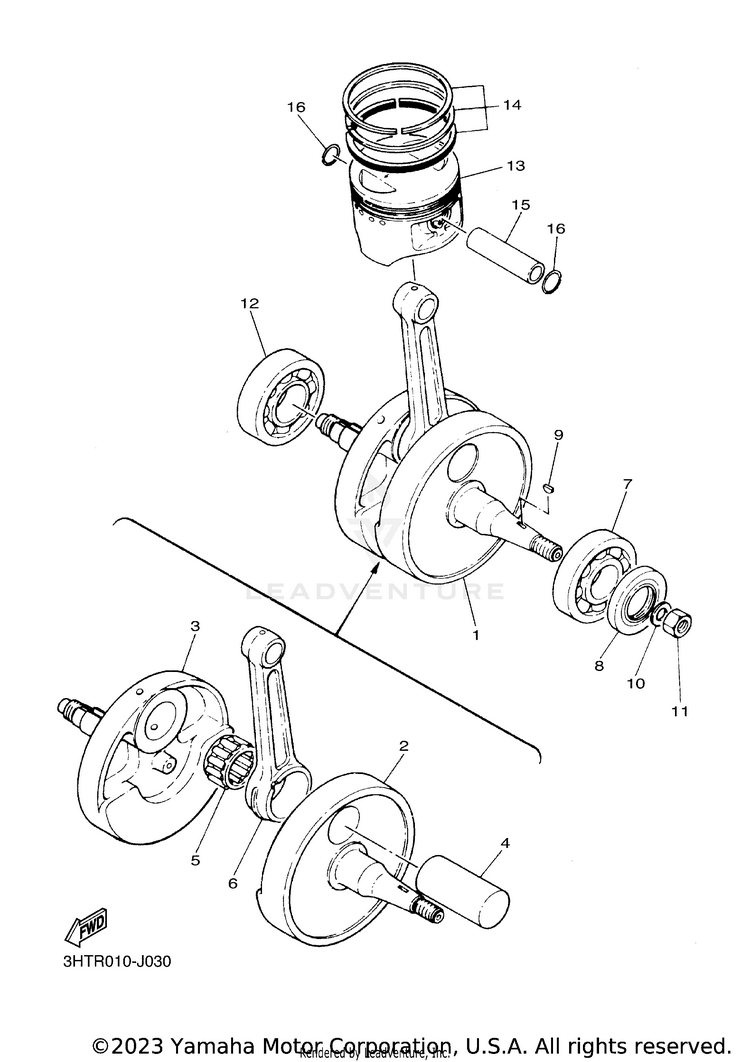

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12H6-11400-01-00CRANKSHAFT ASSY$534.99$466.54Usually ships in 7-10 business days
22H6-11412-00-00CRANK 1$259.99$206.09Usually ships in 7-10 business days
32H6-11422-01-00CRANK 2$271.99$215.81Usually ships in 7-10 business days
4583-11681-01-00PIN, CRANK 1$69.99$54.59Usually ships in 7-10 business days
593310-635A5-00BEARING, CYLINDER.#10$83.99$65.51Usually ships in 7-10 business days
62H6-11651-00-00ROD, CONNECTING$81.99$63.95Usually ships in 7-10 business days
793306-30630-00BEARING$79.99$62.395 In-Stock
893102-30145-00OIL SEAL, SD-TYPE$15.49$12.086 In-Stock
990280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
1090201-12593-00WASHER, PLATE$10.49$8.185 In-Stock
1190170-12347-00NUT, HEXAGON$11.49$8.963 In-Stock
1293306-30702-00BEARING$80.99$63.176 In-Stock
132H6-11631-01-96PISTON (STD)$95.99$74.87Usually ships in 7-10 business days
14583-11610-02-00PISTON RINGSET STD (583-11610-0$79.99$62.39Usually ships in 7-10 business days
152J2-11633-01-00PIN, PISTON$23.99$19.67Usually ships in 7-10 business days
1693450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
