2016 Yamaha SR400 Front Master Cylinder OEM Parts Diagram

Submodel SR400 - SR400GCB - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

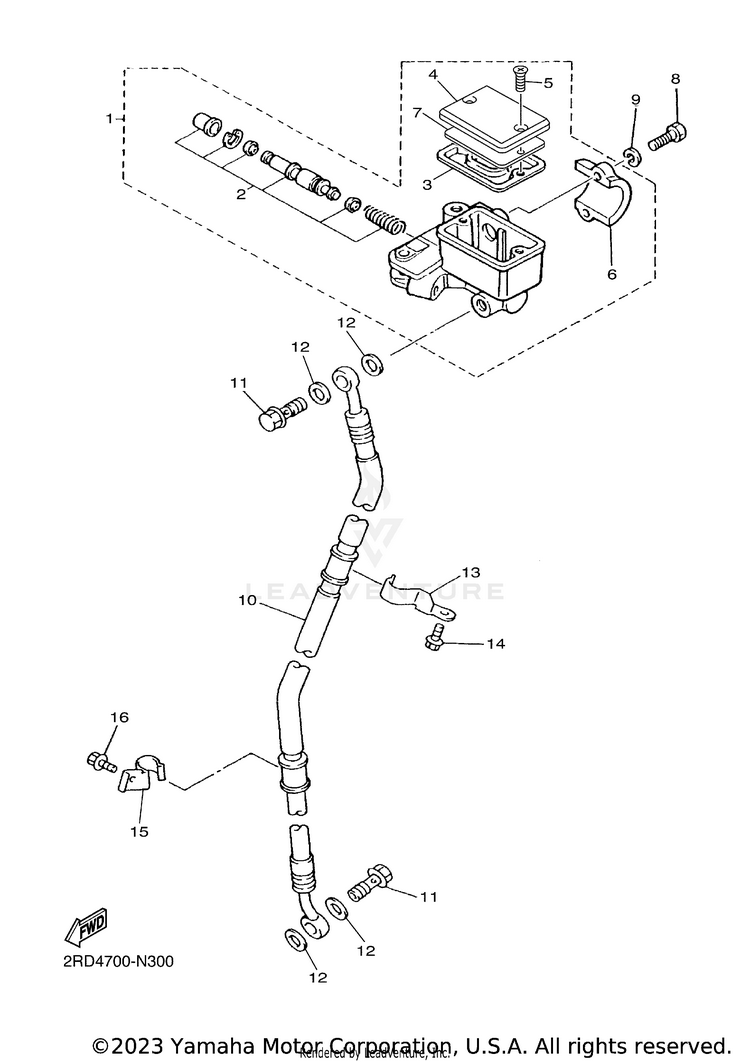

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HT-2583T-00-00MASTER CYLINDER ASSY$145.99$113.87Usually ships in 7-10 business days
24H7-W0041-00-00CYLINDER KIT, MASTER$96.99$75.65Usually ships in 7-10 business days
34HM-25854-00-00

(replaces part #
4K0-25854-00-00)

DIAPHRAGM, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
44HM-25852-01-00CAP, RESERVOIR$19.49$15.98Usually ships in 7-10 business days
598707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
73GM-2585B-10-00PLATE, DIAPHRAGM$14.49$11.88Usually ships in 7-10 business days
897017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
103HT-25872-11-00HOSE, BRAKE 1$71.99$56.15Usually ships in 7-10 business days
1190401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1290430-10005-00GASKET$9.49$7.4010+ In-Stock
133HT-25886-00-00HOLDER, BRAKE HOSE$8.49$7.64Usually ships in 7-10 business days
1495027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
155JX-21598-00-00HOLDER, WIRE 2$11.49$9.42Usually ships in 7-10 business days
1695027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
