2016 Yamaha SR400 Intake OEM Parts Diagram

Submodel SR400 - SR400GCB - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

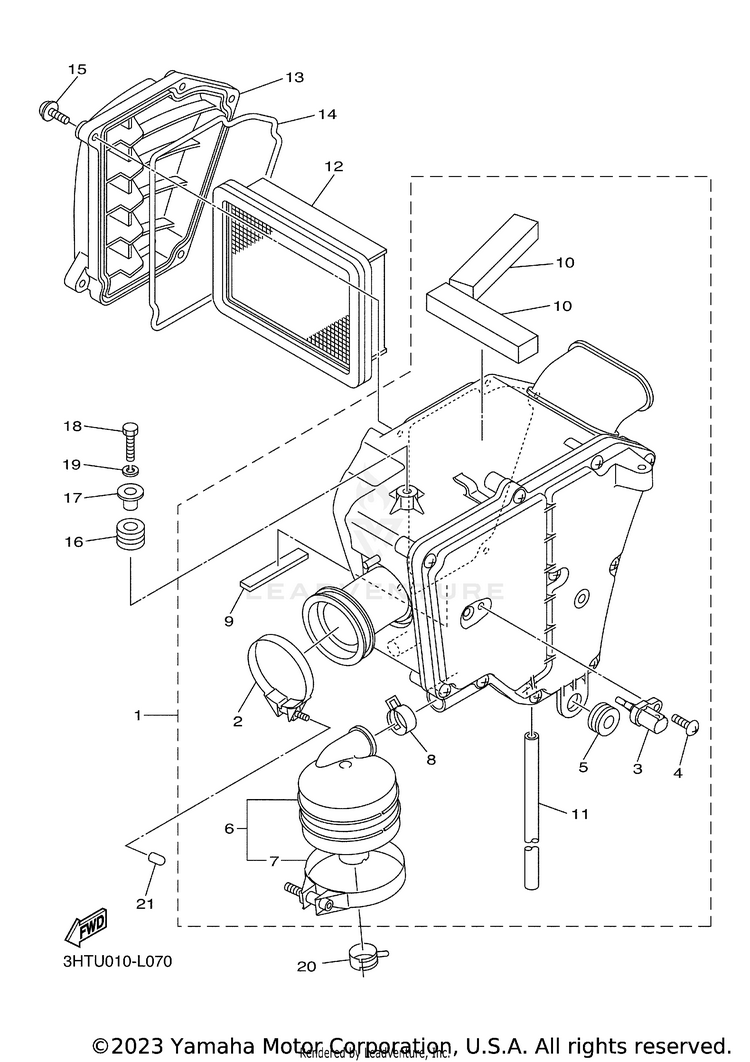

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HT-14401-R0-00AIR CLEANER CASE ASSY$240.99$191.01Usually ships in 7-10 business days
290450-55003-00

(replaces part #
90450-55001-00)

HOSE CLAMP ASSY$6.49$5.84Usually ships in 7-10 business days
38FP-85886-00-00SENSOR, AIR TEMPERATURE$65.99$51.4710+ In-Stock
498904-05012-00

(replaces part #
98902-05012-00)

SCREW,BINDING$1.85$1.5910+ In-Stock
590480-14329-00GROMMET$9.49$7.4010+ In-Stock
63HT-15370-R0-00BREATHER ASSY$48.99$40.17Usually ships in 7-10 business days
790450-73002-00HOSE CLAMP ASSY$11.49$9.42Usually ships in 7-10 business days
890467-20154-00CLIP$2.10$1.89Usually ships in 7-10 business days
93HT-14425-R0-00DAMPER 1$9.49$8.54Usually ships in 7-10 business days
103HT-14426-R0-00DAMPER 2$8.99$8.09Usually ships in 7-10 business days
1190445-10144-00

(replaces part #
90445-10140-00)

HOSE$8.49$6.622 In-Stock
124B5-14451-00-00ELEMENT, AIR CLEANER$38.99$31.971 In-Stock
133HT-1441A-R1-00

(replaces part #
3HT-1441A-R0-00)

COVER, CLEANER CASE 1$31.99$26.23Usually ships in 7-10 business days
143HT-14462-R0-00SEAL$9.49$8.54Usually ships in 7-10 business days
1598902-05020-00SCREW, BIND$1.85$1.5910+ In-Stock
1690480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
1790387-07391-00COLLAR$10.49$8.1810+ In-Stock
1897017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
1992907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
2090467-20154-00CLIP$2.10$1.89Usually ships in 7-10 business days
21895-14169-00-00CAP$5.99$4.676 In-Stock
