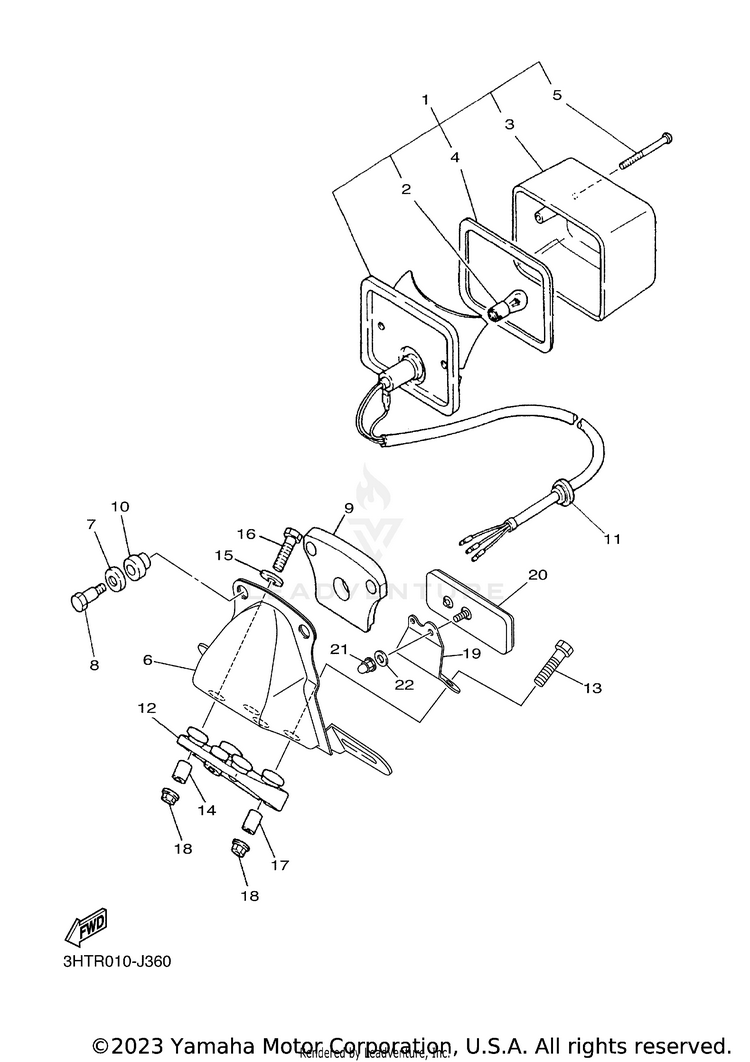

2016 Yamaha SR400 Taillight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2RD-84710-10-00	TAILLIGHT UNIT ASSY	$61.99	$48.35	Usually ships in 7-10 business days
2	256-84714-61-00	BULB (12V-27/8W)	$12.99	$10.13	10+ In-Stock
3	1M1-84521-60-00	LENS, TAILLIGHT	$43.99	$34.31	5 In-Stock
4	1M1-84523-60-00	GASKET, LENS	$14.49	$11.30	3 In-Stock
5	5BF-8433E-00-00 (replaces part # 1M1-84524-60-00)	SCREW, ADJUSTING	$8.49	$6.62	10+ In-Stock
6	3HT-84751-20-00	BRACKET, LICENSE	$120.99	$94.37	Usually ships in 7-10 business days
7	2H7-84754-00-00	WASHER, SPECIAL	$11.99	$9.83	Usually ships in 7-10 business days
8	3HT-84526-00-00	SCREW	$4.25	$3.82	Usually ships in 7-10 business days
9	1M1-84512-60-00	SEAT, BASE	$9.99	$8.99	Usually ships in 7-10 business days
10	1M1-84527-60-00	DAMPER	$9.49	$8.54	Usually ships in 7-10 business days
11	90480-12013-00	GROMMET	$9.49	$7.40	3 In-Stock
12	2J2-84753-00-00	DAMPER	$17.99	$14.75	Usually ships in 7-10 business days
13	97017-06030-00 (replaces part # 97007-06030-00)	BOLT,HEXAGON	$3.90	$3.35	10+ In-Stock
14	90387-07020-00 (replaces part # 90387-0714B-00)	COLLAR	$9.49	$7.40	10+ In-Stock
15	90201-06380-00	WASHER, PLATE	-	$0.71	10+ In-Stock
16	97017-06025-00 (replaces part # 97007-06025-00)	BOLT	$4.55	$3.91	10+ In-Stock
17	90387-0714A-00	COLLAR	$0.95	$0.86	Usually ships in 7-10 business days
18	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
19	3HT-21641-00-00	BRACKET, REFLECTOR	$10.49	$8.60	Usually ships in 7-10 business days
20	3Y6-85130-02-00	REAR REFLECTOR ASSY	$30.99	$24.17	3 In-Stock
21	90176-05003-00	NUT, CROWN	$3.90	$3.51	Usually ships in 7-10 business days
22	90201-05039-00	WASHER, PLATE	$9.49	$7.40	5 In-Stock
