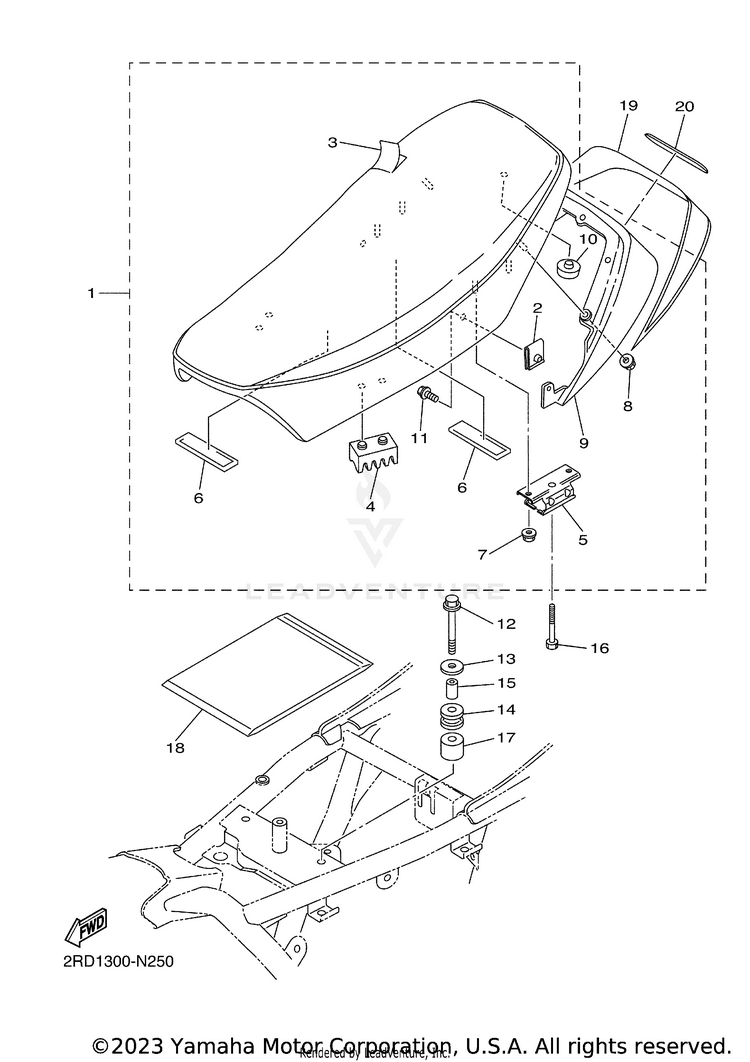

2016 Yamaha SR400 Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3HT-24730-50-33	DOUBLE SEAT ASSY \| YB	$321.99	$251.15	Usually ships in 7-10 business days
2	90183-051A0-00 (replaces part # 90183-05024-00)	NUT, SPRING	$4.10	$3.53	10+ In-Stock
3	3HT-24731-51-00 (replaces part # 3HT-24731-50-00)	COVER, SEAT	$75.99	$59.27	Usually ships in 7-10 business days
4	2J2-24723-00-00	DAMPER, SEAT	$23.99	$19.67	Usually ships in 7-10 business days
5	2J2-24724-01-00	DAMPER, SEAT	$65.99	$51.47	Usually ships in 7-10 business days
6	4KG-2814E-10-00	HOOK	$4.50	$4.05	Usually ships in 7-10 business days
7	95604-06200-00 (replaces part # 95602-06200-00)	NUT, U FLANGE	$2.95	$2.54	10+ In-Stock
8	95607-05200-00 (replaces part # 95602-05200-00)	NUT, U FLANGE	$10.49	$8.18	3 In-Stock
9	2J2-24756-01-33 (replaces part # 2J2-24756-00-33)	COVER, TAIL \| YB	$75.99	$59.27	Usually ships in 7-10 business days
10	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
11	90119-05015-00 (replaces part # 90119-05016-00)	BOLT, WITH WASHER	$9.49	$8.54	Usually ships in 7-10 business days
12	95812-06055-00	BOLT, FLANGE	$1.90	$1.84	10+ In-Stock
13	90201-06074-00	WASHER, PLATE	$10.49	$8.18	Not Shipping
14	2J2-24737-00-00	DAMPER, SEAT	$7.49	$6.74	4 In-Stock
15	36Y-83913-01-00 (replaces part # 90387-06554-00)	COLLAR, LEVER 1	$10.99	$8.57	7 In-Stock
16	90101-08439-00	BOLT	$9.49	$8.54	6 In-Stock
17	3HT-24725-00-00	SPACER 1	$13.99	$11.47	Usually ships in 7-10 business days
18	4KG-28186-00-00	POUCH	$19.49	$15.98	Usually ships in 7-10 business days
19	2RD-24757-00-00	GRAPHIC, TAIL COVER	$26.99	$22.13	Usually ships in 7-10 business days
20	3LS-21781-00-00	EMBLEM 1	$44.99	$36.89	Usually ships in 7-10 business days
