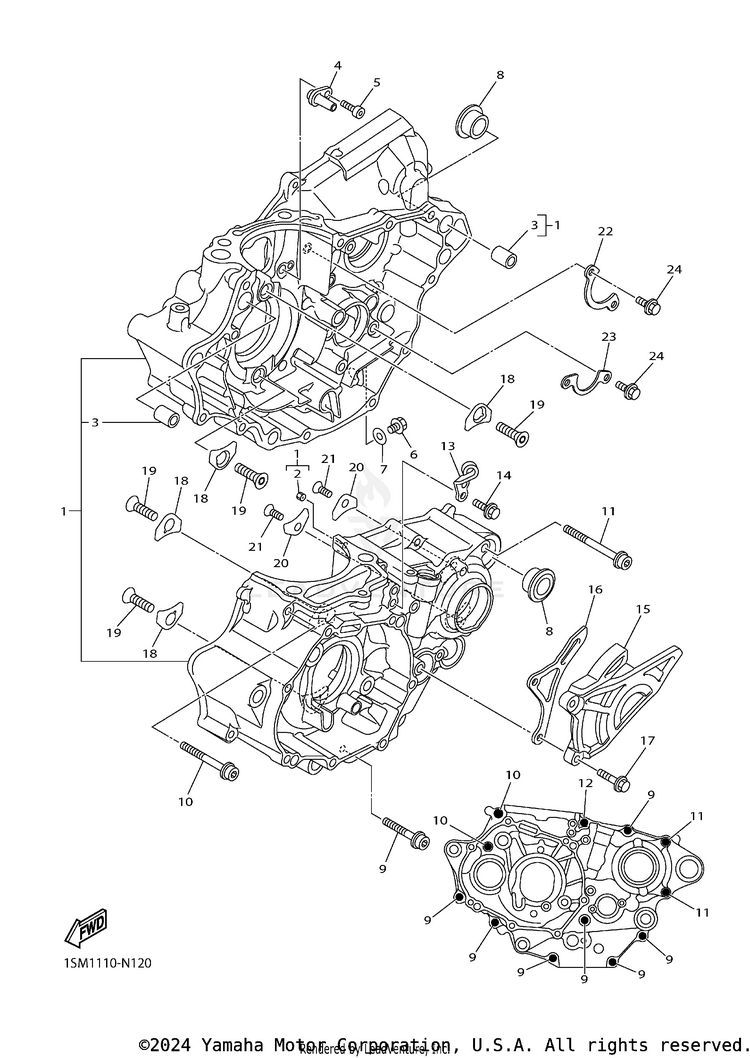

2016 Yamaha WR250F Crankcase OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1SM-15100-29-00 (replaces part # 1SM-15100-09-00)	CRANKCASE ASSY	$1,522.99	$1,187.93	2 In-Stock
2	1SM-15138-00-00	NOZZLE 1	$8.49	$7.64	Usually ships in 7-10 business days
3	99530-14016-00	PIN, DOWEL A	$3.80	$3.27	10+ In-Stock
4	1SM-15155-00-00	NOZZLE 3	$41.99	$34.43	Usually ships in 7-10 business days
5	91317-05012-00 (replaces part # 90110-05032-00)	BOLT	$2.75	$2.36	10+ In-Stock
6	95022-10016-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
7	90430-10188-00	GASKET \| INCL. IN BOTTOM END GASKET KIT	$3.45	$2.97	10+ In-Stock
8	90387-17015-00	COLLAR	$28.99	$22.61	10+ In-Stock
9	90110-06391-00	BOLT, HEXAGON SOCKET HEAD	$2.55	$2.49	9 In-Stock
10	90110-06363-00	BOLT, HEXAGON SOCKET HEAD	$3.60	$3.10	5 In-Stock
11	90110-06392-00	BOLT, HEXAGON SOCKET HEAD	$4.05	$3.48	6 In-Stock
12	91317-06075-00	BOLT, HEXAGON SOCKET HEAD	$6.49	$5.06	6 In-Stock
13	1SL-15441-00-00	HOLDER, CLUTCH CABLE	$14.49	$11.30	4 In-Stock
14	90105-06100-00 (replaces part # 90105-06099-00)	BOLT, FLANGE	$8.49	$6.62	10+ In-Stock
15	1SL-15421-00-00	COVER, CRANKCASE 2	$17.99	$14.03	8 In-Stock
16	1SL-17466-00-00	GUIDE, CHAIN	$19.99	$15.59	7 In-Stock
17	90105-06189-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
18	18P-15383-00-00	PLATE, BEARING COVER	$8.49	$6.62	10+ In-Stock
19	90151-08008-00 (replaces part # 90151-08007-00)	SCREW, COUNTERSUNK	$2.60	$2.24	10+ In-Stock
20	4JT-15381-01-00	PLATE, BEARING COVER	$14.49	$11.30	10+ In-Stock
21	90151-06052-00 (replaces part # 90149-06074-00)	SCREW	$9.49	$7.40	10+ In-Stock
22	1SM-15388-00-00	PLATE, BEARING COVER	$5.99	$5.39	Usually ships in 7-10 business days
23	1SL-18562-00-00	PLATE, STOPPER 2	$6.99	$6.29	Usually ships in 7-10 business days
24	95022-06012-00 (replaces part # 90105-06081-00)	BOLT, FLANGE	$3.55	$3.05	10+ In-Stock
