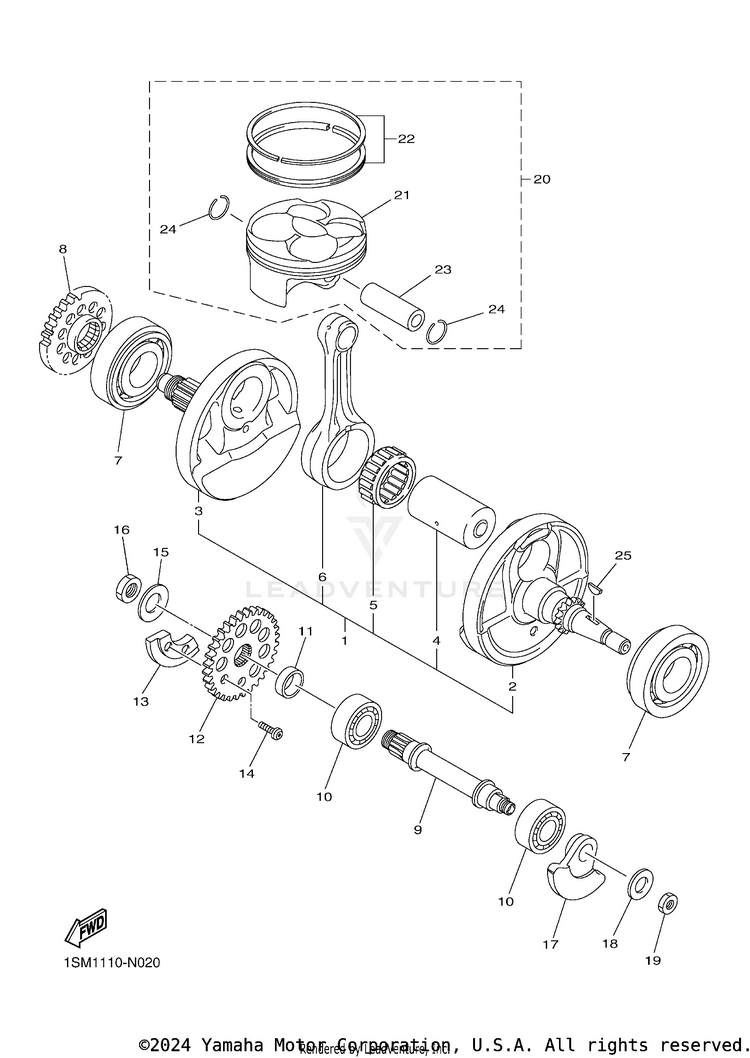

2016 Yamaha WR250F Crankshaft Piston OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2GB-11400-01-00	CRANKSHAFT ASSY	$546.99	$446.92	Usually ships in 7-10 business days
2	2GB-11412-00-00	CRANK 1	$200.99	$159.18	Usually ships in 7-10 business days
3	1SM-11422-00-00	CRANK 2	$223.99	$177.25	Usually ships in 7-10 business days
4	1SM-11681-00-00	PIN, CRANK 1	$72.99	$56.93	10+ In-Stock
5	93310-63097-00 (replaces part # 93310-63096-00)	BEARING	$112.99	$88.13	8 In-Stock
6	2GB-11651-01-00	ROD, CONNECTING	$138.99	$108.41	Usually ships in 7-10 business days
7	93306-20648-00	BEARING	$99.99	$77.99	10+ In-Stock
8	1SM-11536-00-00	GEAR, DRIVE (30T)	$111.99	$87.35	Usually ships in 7-10 business days
9	1SM-11455-00-00	SHAFT 1	$174.99	$136.49	3 In-Stock
10	93306-20351-00	BEARING	$42.99	$33.53	10+ In-Stock
11	90387-175R2-00	COLLAR	$13.99	$10.91	4 In-Stock
12	1SM-11531-00-00	GEAR, BALANCE WEIGHT	$124.99	$97.49
13	1SM-11454-00-00	WEIGHT 1	$76.99	$60.05
14	90149-06084-00 (replaces part # 90149-06083-00)	SCREW	$9.49	$7.40	4 In-Stock
15	90208-14033-00	WASHER, CONICAL SPRING	$3.85	$3.31	8 In-Stock
16	90170-14171-00	NUT	$10.49	$8.18	4 In-Stock
17	1SM-11464-00-00	WEIGHT 2	$77.99	$60.83	Usually ships in 7-10 business days
18	90208-10001-00	WASHER, CONICAL SPRING	$2.35	$2.02	9 In-Stock
19	90170-10405-00	NUT	$8.49	$6.62	2 In-Stock
20	1SM-116A0-01-00	PISTON ASSY	$179.99	$140.39	5 In-Stock
21	1SM-11631-01-00	PISTON (STD)	$155.99	$121.67	Usually ships in 7-10 business days
22	1SM-11603-00-00	PISTON RING SET (STD)	$44.99	$35.09	10+ In-Stock
23	1SM-11633-00-00	PIN, PISTON	$30.99	$25.41	Usually ships in 7-10 business days
24	93450-17129-00	CIRCLIP	$4.45	$3.83	10+ In-Stock
25	90280-03006-00	KEY, WOODRUFF	$9.49	$7.40	10+ In-Stock

1

2GB-11400-01-00

CRANKSHAFT ASSY

$546.99

$446.92

Usually ships in 7-10 business days
