2016 Yamaha WR250F Shift Shaft OEM Parts Diagram

Submodel WR250F - WR250FG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

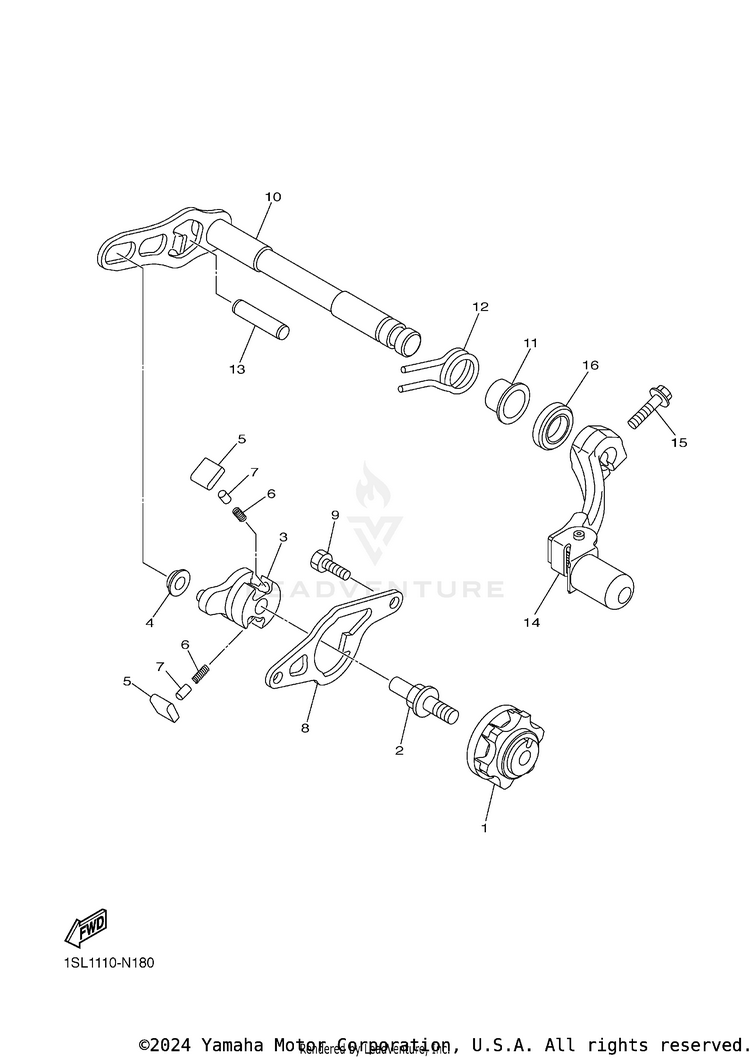

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GB-18185-00-00SEGMENT$31.99$24.955 In-Stock
23XJ-18173-10-00PIN, SHIFT$21.99$17.155 In-Stock
31SL-18122-10-00

(replaces part #
1SL-18122-00-00)

LEVER, SHIFT 2$69.99$54.59Usually ships in 7-10 business days
43XJ-18178-00-00ROLLER, SHIFT LEVER$14.49$11.3010+ In-Stock
53XJ-18182-00-00PAWL, SHIFTER$16.49$12.8610+ In-Stock
690501-052G5-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
73XJ-18184-00-00PIN, PAWL$16.49$12.8610+ In-Stock
81SL-18172-00-00GUIDE, SHIFT$18.99$14.816 In-Stock
990101-06042-00

(replaces part #
90101-06041-00)

BOLT$6.49$5.0610+ In-Stock
102GB-18101-00-00SHIFT SHAFT ASSY$79.99$62.39Usually ships in 7-10 business days
1190387-14020-00COLLAR$8.49$6.626 In-Stock
1290508-29023-00SPRING, TORSION$4.75$4.084 In-Stock
1393608-33002-00PIN, DOWEL$17.49$13.649 In-Stock
141SM-18110-10-00

(replaces part #
1SL-18110-00-00)

SHIFT PEDAL ASSY$140.99$109.976 In-Stock
1590119-06M12-00BOLT, WITH WASHER$4.85$4.178 In-Stock
1693109-14010-00OIL SEAL, SDO-TYPE$14.49$11.3010+ In-Stock
