2016 Yamaha WR250F Meter OEM Parts Diagram

Submodel WR250F - WR250FG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

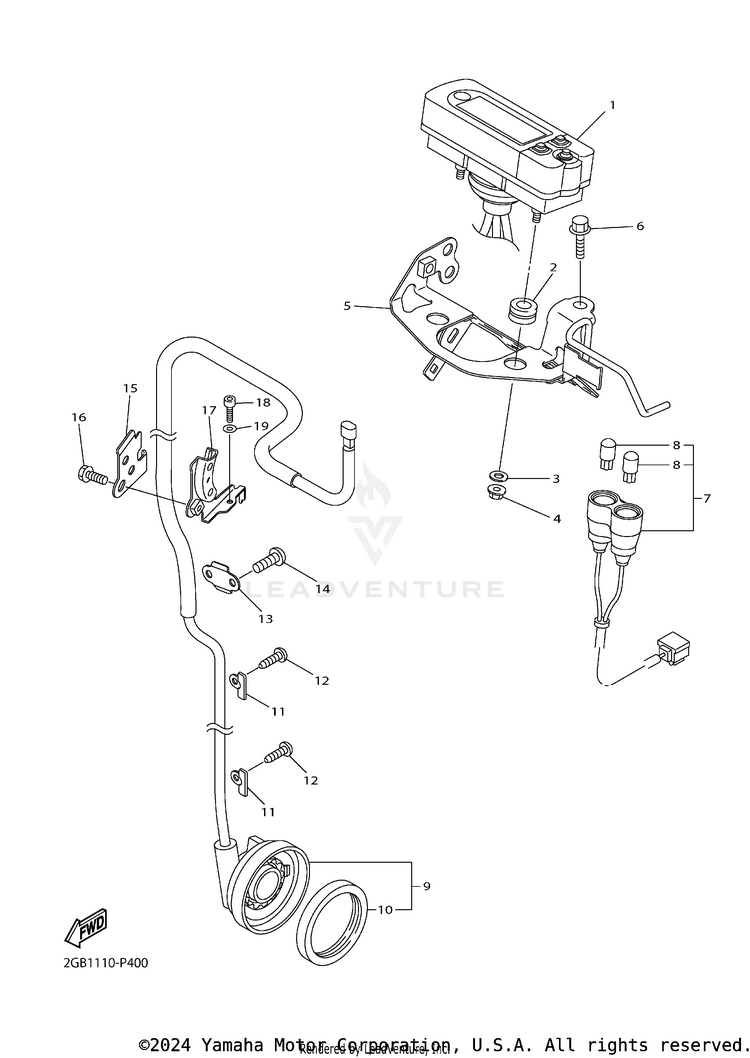

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GB-83500-20-00METER ASSY (MPH)$426.99$355.05Usually ships in 7-10 business days
290480-14012-00GROMMET$13.49$10.524 In-Stock
390201-05021-00WASHER, PLATE$2.10$1.8110+ In-Stock
495702-05500-00NUT, WITH WASHER-$1.118 In-Stock
52GB-83519-01-00

(replaces part #
2GB-83519-00-00)

BRACKET, METER$122.99$95.93Usually ships in 7-10 business days
690105-06170-00BOLT, FLANGE$5.49$4.2810+ In-Stock
72GB-83530-00-00PILOT LIGHT ASSY$73.99$57.71Usually ships in 7-10 business days
83FV-83517-00-00

(replaces part #
5GH-83516-00-00)

BULB (12V-1.7W)$9.49$7.4010+ In-Stock
92GB-83755-00-00SENSOR, SPEED$274.99$214.49Usually ships in 7-10 business days
1093105-47007-00OIL SEAL$17.49$13.647 In-Stock
115TJ-8375F-C0-00PLATE 2$10.99$8.577 In-Stock
1297702-40010-00SCREW, TAPPING$4.65$4.0010+ In-Stock
135TJ-8375E-C0-00PLATE 1$8.49$6.624 In-Stock
1492012-05008-00BOLT, BUTTON HEAD$3.05$2.6210+ In-Stock
152GB-83595-00-00CLAMP$6.99$6.29Usually ships in 7-10 business days
1690105-06105-00BOLT, FLANGE$8.49$6.625 In-Stock
172GB-23591-00-00BRACKET 1$21.99$18.03Usually ships in 7-10 business days
1892012-06012-00BOLT, BUTTON HEAD$4.70$4.0410+ In-Stock
1992990-06600-00

(replaces part #
92902-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
