2016 Yamaha WR250F Electrical 1 OEM Parts Diagram

Submodel WR250F - WR250FG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

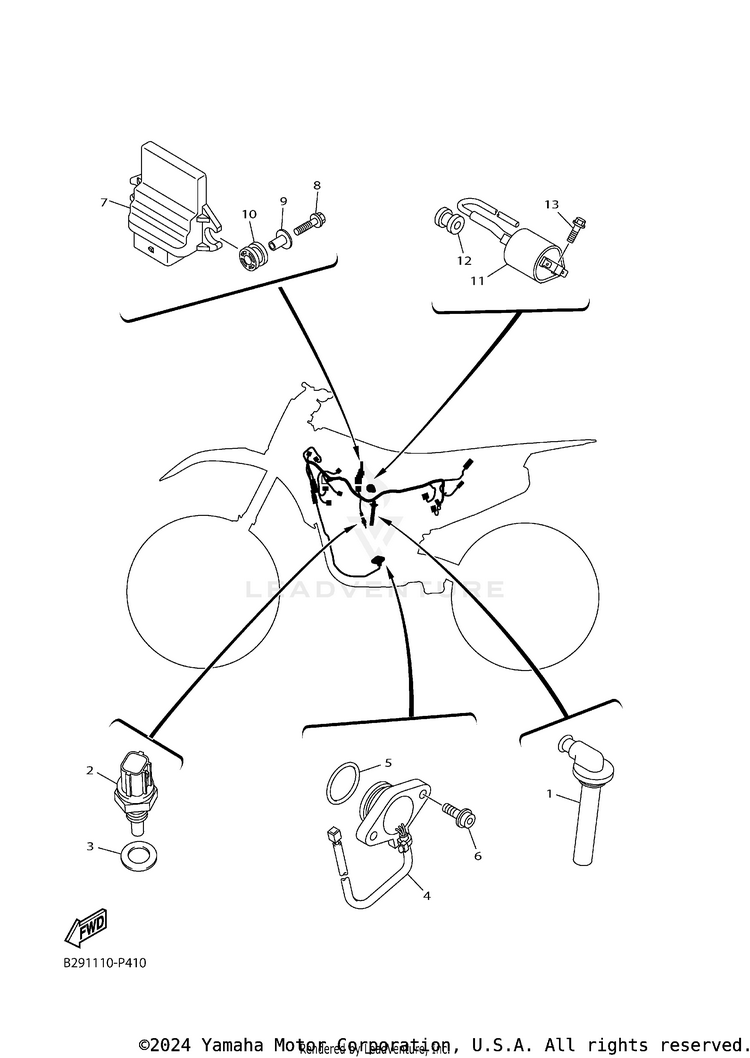

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SM-82370-01-00

(replaces part #
1SM-82370-00-00)

PLUG CAP ASSY$103.99$81.115 In-Stock
252B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
390430-10004-00GASKET$7.49$5.8410+ In-Stock
42GB-82540-01-00

(replaces part #
2GB-82540-00-00)

NEUTRAL SWITCH ASSY$49.99$38.992 In-Stock
593210-21001-00O-RING$6.49$5.0610+ In-Stock
690110-05028-00

(replaces part #
90110-05062-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
72GB-8591A-01-00

(replaces part #
2GB-8591A-00-00)

ENGINE CONTROL UNIT ASSY$501.99$405.95Usually ships in 7-10 business days
890105-05005-00BOLT, FLANGE$1.20$1.0310+ In-Stock
990387-05048-00COLLAR$6.49$5.068 In-Stock
1090480-13029-00GROMMET$6.49$5.065 In-Stock
111SM-82310-03-00

(replaces part #
1SM-82310-00-00)

IGNITION COIL ASSY$58.99$46.017 In-Stock
1290480-11015-00GROMMET$3.95$3.403 In-Stock
1395022-06016-00BOLT, FLANGE$3.90$3.3510+ In-Stock
